Roll Up & Walk On Aprons
fit meets function and flexibility
Flexible apron covers are a critical component of machine protection, such as guideway protection and exposed machine parts. They protect the operators from moving machine components, and they protect the machine from dirt, dust, hot chips, falling workpiece parts, and other debris as well as temperature flucuations in the working environment.
Our apron covers are fitted in highly complex modular systems. They are not only functional and space-saving, but also optically very appealing. Our apron covers are custom designed for your application.
Available as standard mounted, roll-up, or walk-on aprons (depending on the material), our apron covers can be fitted into highly complex modular systems. They are not only functional and space-saving, but visually appealing. Working with a wide range of materials and models, our engineers will team up with you to design and manufacture a machine apron cover that's perfect for your application.
FEATURES
- Lightweight and low cost
- Standard and custom space-saving designs based on your application
- Driven by high-quality springs and ball bearing rollers with permanent lubrication in a dust-proof casing
- Ensure a long service life and reliability of machines
- Maximum traverse speed of 80 m/min with the maximum stroke dependent on the width of the cover
- Easy assembly and repair
Materials Options
*Walk-On, Closed Canister, and Open Reel designs available. For further material specifications, download the PDF.
- Coated Fabric | High-tensile polyamide fabric coated with polyurethane
- Stainless Steel | Durable, corrosion-resistant sheets assembled in sections
- Aluflex / GS20 | Aluminum profiles with polyurethane hinges
- AGS Series* | Anodized aluminum profiles & hinges/links
- Series 53 | Polyurethane/aluminum-coated polyester sheets with steel, brass, or aluminum lamellas
Covers made with stainless steel and AGS series are available in walkable versions.
Mounting Options
Special fastening types according to customer specifications available upon request. Combinations are possible.
OPEN REEL VS CLOSED CANISTER

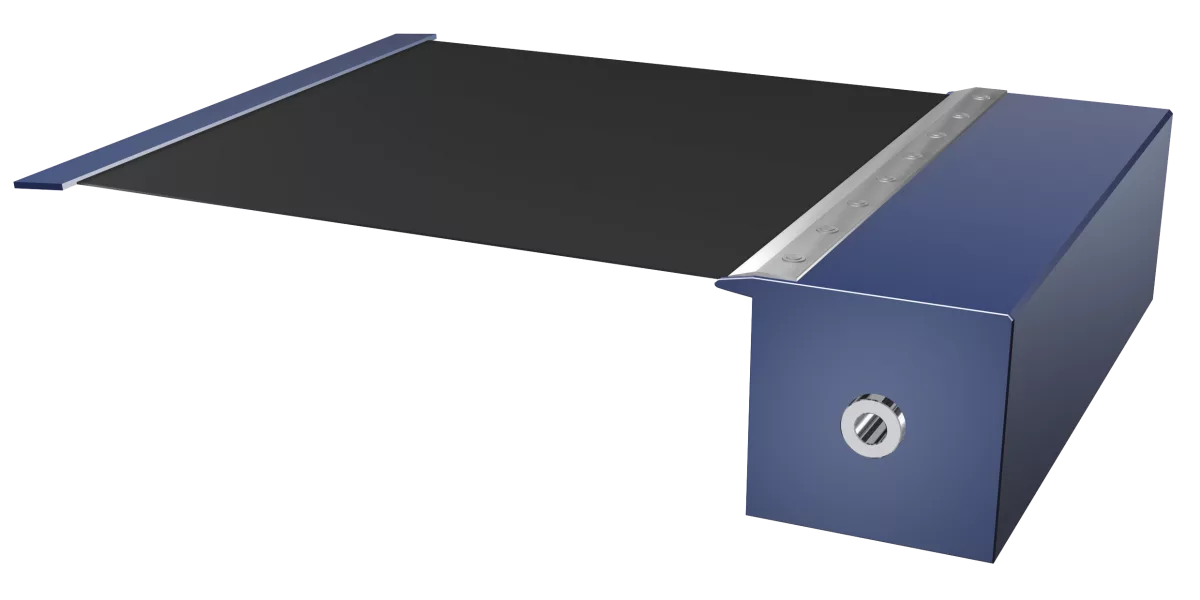

CLOSED CANISTER
Protective cannister housings can be provided to add protection to the roll-up cover's gearing, spindle and wound-up cover areas.

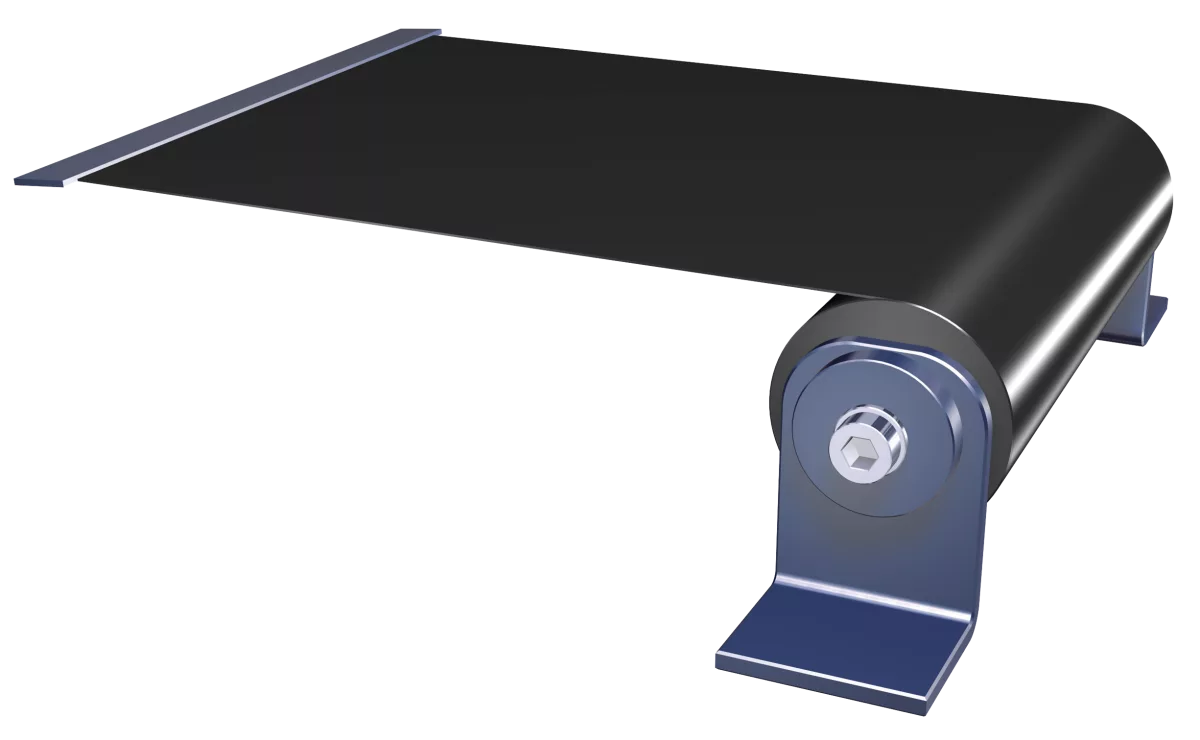

OPEN REEL
The standard option for roll-up aprons. Cost-efficient and effective in most standard applications.
STANDARD END LINKS
Special fastening types according to customer specifications available upon request.

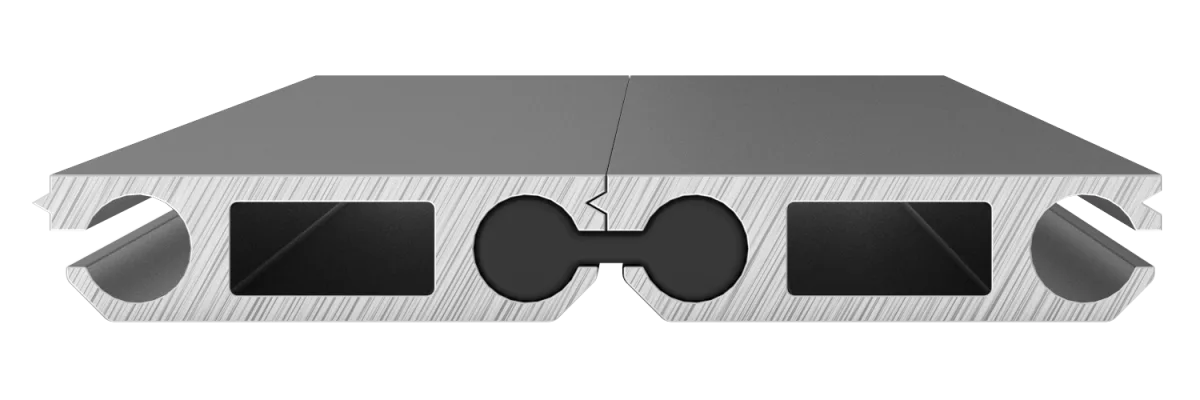

Normal Rod

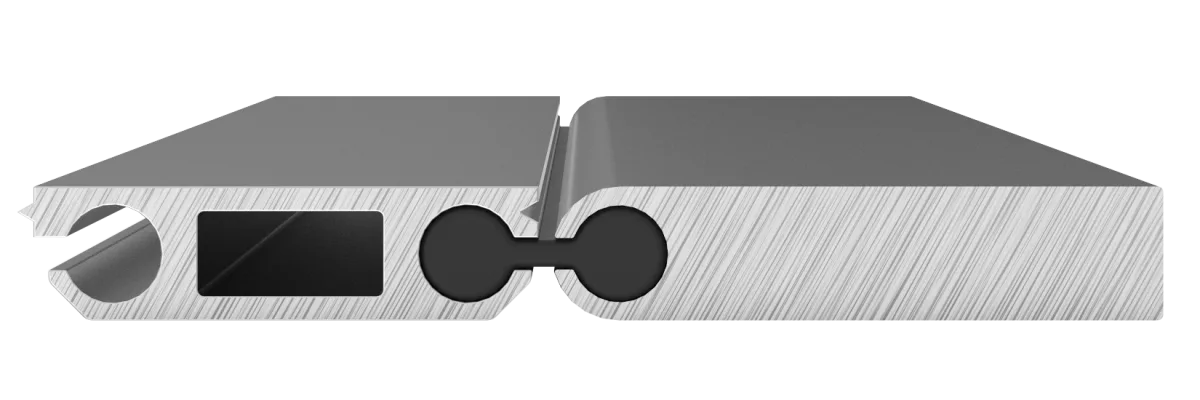

Straight End Link

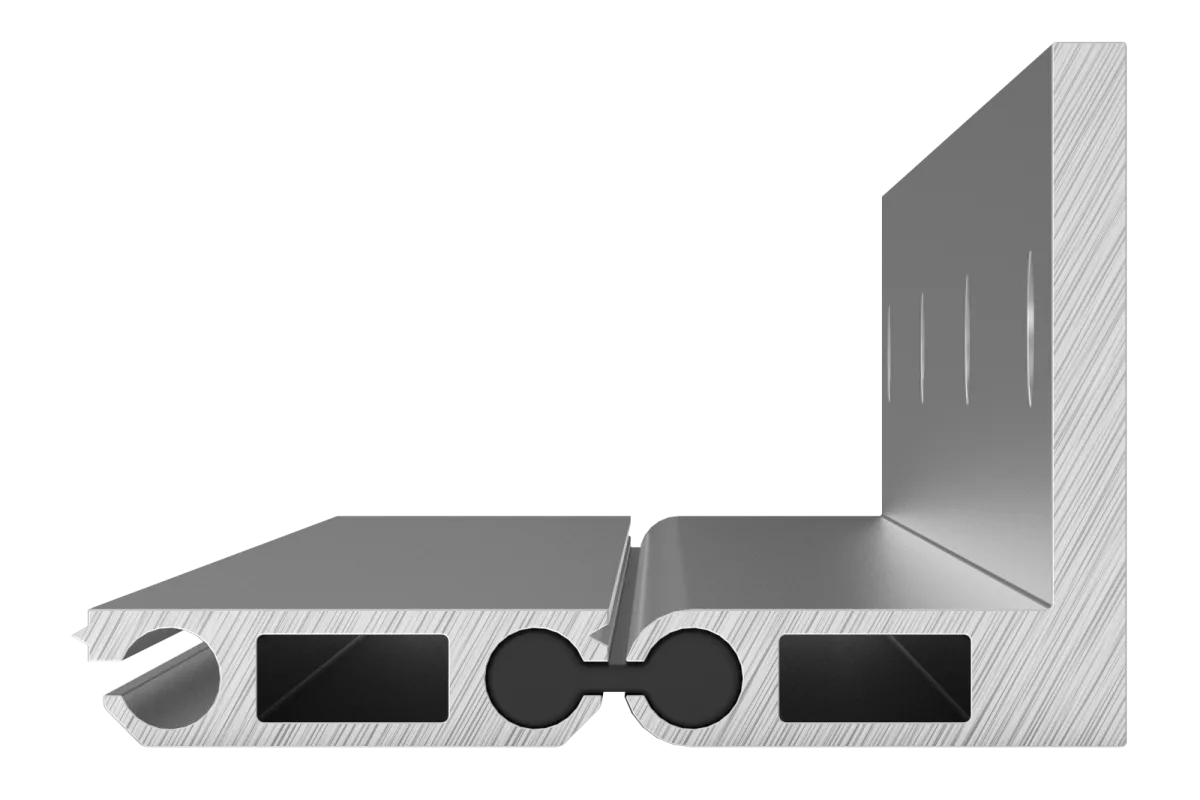

Connection Angle
Normal Rod
Straight End Link
Connection Angle
Apron Types
STANDARD APRON
✔ Coated Fabric
✔ Stainless Steel
✔ Aluminum extrusions with Polyurethane or Aluminum Hinges
✔ Coated Polyester with Metal Lamellas
✘ Open Reel Design
✘ Protective Canister Design

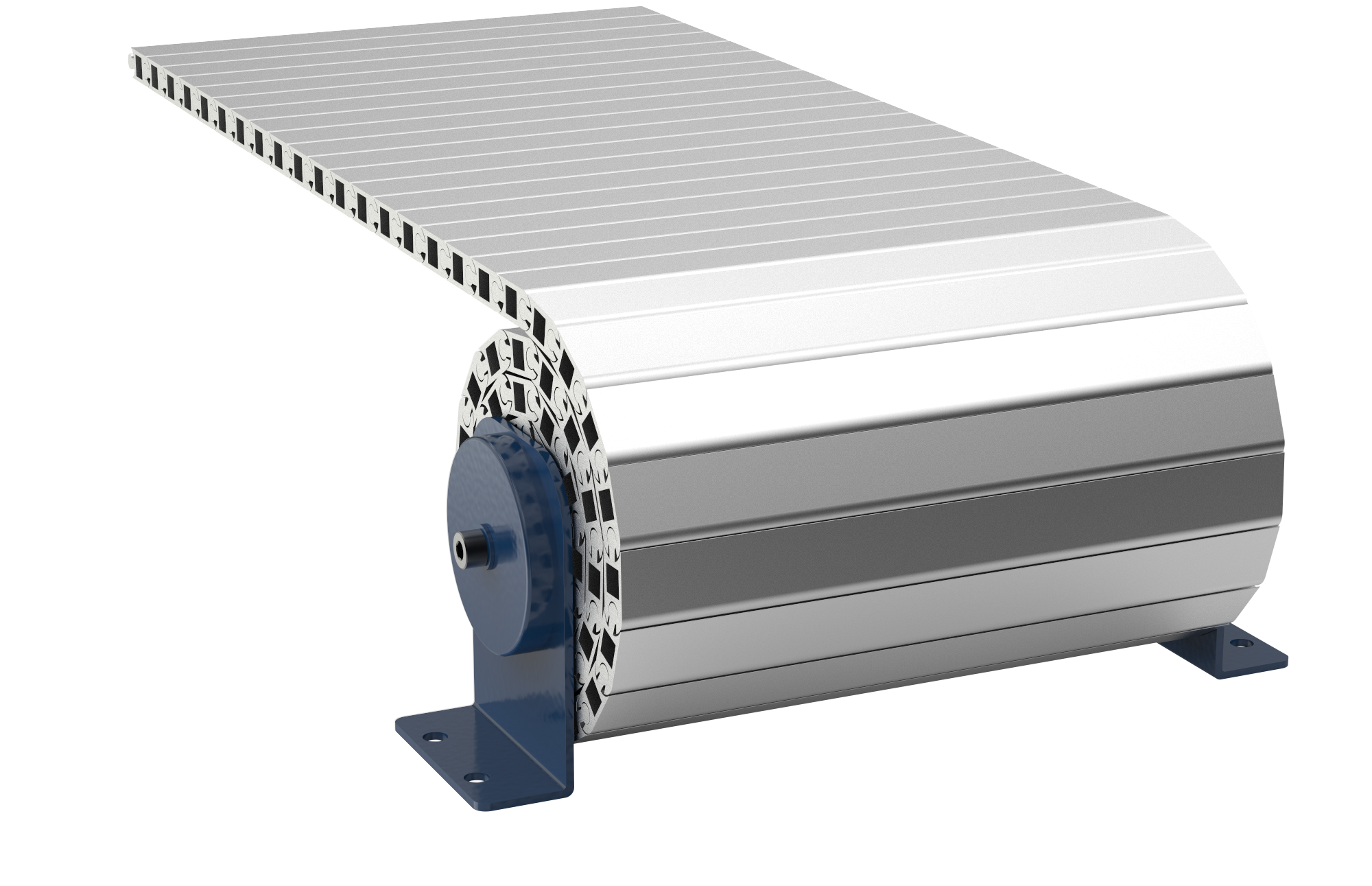

ROLL-UP APRONS
✔ Coated Fabric
✔ Stainless Steel
✔ Aluminum extrusions with Polyurethane or Aluminum Hinges
✔ Coated Polyester with Metal Lamellas
✔ Open Reel Design
✔ Protective Canister Design
WALK-ON APRONS
✘ Coated Fabric
✔ Stainless Steel
✔ Aluminum extrusions with Polyurethane or Aluminum Hinges
✔ Coated Polyester with Metal Lamellas
✔ Open Reel Design
✔ Protective Canister Design
Hennig Helps Resource Hub
A destination for manufacturers who simply don't have time for downtime—we're here to help make you successful.
FAQ'S
If machines are covered with a roller blind or a link apron, this cover serves to protect against dirt, dust, chips, grease, oil, chemicals, coolants, or splash. In addition, a machine cover can be useful as protection against access for the personnel. With the latter, safety is the focus, similar to pit covers.
Optimal protection is guaranteed when the protective cover is perfectly matched to the application and the environment. In addition to temperature resistance, other things to be considered are direct contact heat, corrosion protection, and splash water tightness. In other words, what conditions is the machine exposed to and what should it be protected against? The answers will be your criteria in selecting a cover.
Trust Hennig to offer you professional protection for your machine. Our cover options are recognized worldwide for their exceptional quality. We match the cover to the application, suggesting different materials for each situation. If you like, we will meet with you for a consultation to discuss the options available to you for the protection of your individual machine.
