H-Series Carbide Billet Saws
high-productivity, cost-efficient cutting
At AMSAW, carbide sawing isn't just a product—it’s our origin story. In 1969, our founder Willy Goellner revolutionized industrial metal cutting by inventing the carbide saw system. That legacy drives everything we build today.
AMSAW production saw systems are engineered for enabling high-productivity, cost-efficient cutting for steel mills and forging facilities. Configurable for both manual and fully automated operations, these machines are trusted by steel processors and OEMs around the world.
Each system features a robust, modular design with Allen Bradley controls, a single-point control system, and system monitoring—built to maximize uptime and blade life. With a larger hub diameter for improved blade life and a ratio-optimized drive for maximum power, AMSAW delivers the throughput your operation demands with the precision your customers expect.
From simple cuts to fully integrated systems with material handling and measurement, or part scanning, weighing, and marking, AMSAW adapts to your production needs—whether in agriculture, automotive, or beyond.
H-Series Carbide Billet Saws
Built for Maximum Cutting Power
Baseline Saw System
The AMSAW H-Series Horizontal Slide-Head Saw offers a flexible foundation for both standalone and fully automated industrial cutting applications. Engineered with precision and adaptability in mind, it supports a range of configurations—from a basic, servo-driven sawing unit with programmable cutting cycles to a fully integrated system with automated material feed, positioning, and scrap removal. Its modular design enables manufacturers to tailor each installation to their specific workflow, whether upgrading existing lines or deploying new turnkey solutions. The H-Series excels in environments demanding repeatable accuracy, robust clamping, and scalable automation.
Key Features
- Servo-driven horizontal slide-head for consistent cutting performance
- Dual hydraulic fixture for secure material clamping
- Slide-head and fixture bases for stable, accurate operation
- PLC control system for programmable and repeatable cutting cycles
- Integrated hydraulics, pneumatics, and lubrication for simplified maintenance and operation
In its basic configuration, the system does not include material handling or material positioning components. These features are available as optional AMSAW modules or can be supplied by the customer.
The included PLC control enables an automatic clamp-cut-unclamp cycle, making this saw ideal for use in both manual standablne operations and automated production environments.

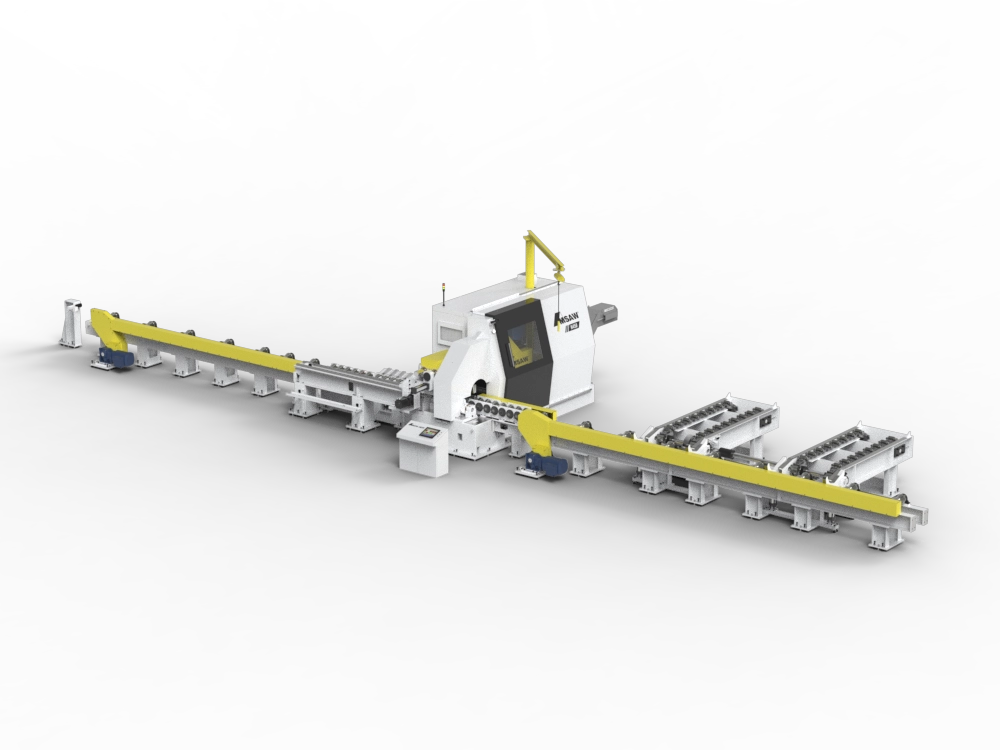

Automated Sawing System
The Automated Horizontal Sawing System from AMSAW is engineered for high-throughput operations requiring automatic material handling and precision cutting. This system includes:
- Basic Horizontal Saw
- Automated Material Positioning and Removal
- Powered Entry Conveyor
- Exit System (powered or non-powered)
- Exit Conveyor
- Scrap Dump Conveyor
- Standard and Custom Material Handling Options
This configuration provides the essential equipment to automatically position material, perform the cut, remove scrap, and transfer finished pieces to the unload station.
A fully automated system requires integrated material handling equipment on both the entry and exit sides of the saw. These components can be included with the system or supplied by the customer, depending on application needs.
H-Series Carbide Billet Saws
Technical Specifications
| Product ID | Material Profile | Material ø (min) | Material ø (max) | Material Length Load Table (min) | Meterial Length Load Table (max) | Cut Length (min) | Cut Length Single Index (max) | Cut Length Opt. Single Index (max) | Cut Length Conveyable Length (min) | Cut Length Scrap Dump Length (max) | Spindle Power | Spindle Speed (RPM) | Blade ø (min) | Blade ø (max) | Material Positioning Accuracy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Round | 6 in (150 mm) | 14 in (350 mm) | 10 ft (3 m) | 30 ft (9 m) | 1.2 in (30 mm) | 118 in (3000 mm) | +60 in (1500 mm) x 4 max | 20 in (500 mm) | 20 in (500 mm) | 100 HP (75 Kw) | 30-65 | 31.5 in (800 mm) | 46.0 in (1170 mm) | 0.025 in (0.63 mm) | |
| 450 | Round | 8 in (200 mm) | 18 in (450 mm) | 10 ft (3 m) | 30 ft (9 m) | 1.2 in (30 mm) | 118 in (3000 mm) | +60 in (1500 mm) x 4 max | 20 in (500 mm) | 20 in (500 mm) | 150 HP (112 Kw) | 25-50 | 40.0 in (1000 mm) | 56.0 in (1425 mm) | 0.025 in (0.63 mm) | |
| 600 | Round | 10 in (250 mm) | 24 in (600 mm) | 10 ft (3 m) | 30 ft (9 m) | 2.0 in (50 mm) | 118 in (3000 mm) | +60 in (1500 mm) x 4 max | 20 in (500 mm) | 20 in (500 mm) | 200 HP (150 Kw) | 22-38 | 48.0 in (1200 mm) | 68.0 in (1725 mm) | 0.030 in (0.75 mm) |
Your Selection
Each model below is routed to the best next step based on availability.
Note: Crop/Tail CUT, the bar must be the same diameter on both sides of the blade. The crop or tail side must maintain that diameter for at least 1.2” (30mm) beyond the blade. This may require a crop or tail length longer than 1.2” (30mm) depending on the condition of the bar end.
