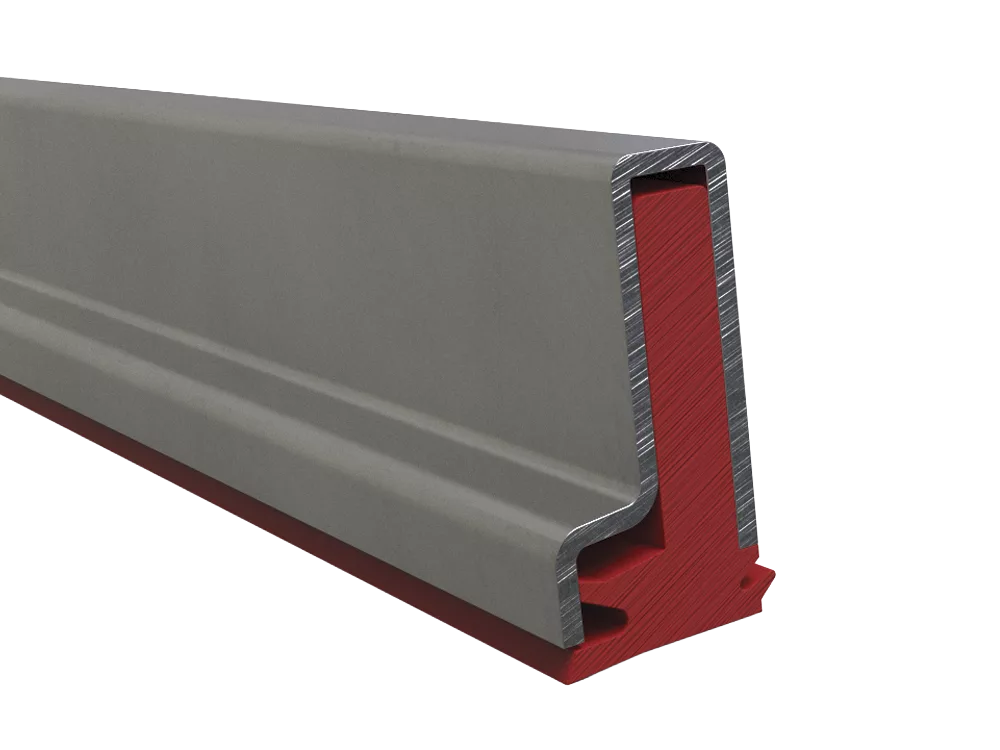

Steel Encased Wipers (AB)

Hennig's steel encased wipers offer optimized designs for metal-cutting machines with large volumes of hot chips and coolants, however is only partially resistant to acids, leaches, and gasoline. These wipers are designed with polyurethane lips with stainless steel support profiles to offer additional mechanical stability under permanent load.

  • Protected against hot chips and mechanical damage
  • Permanent temperature resistance up to 90°C
  • Easy repairs and replacements
  • Standard lengths available in stock (mm): AB I, AB III - 530/1000/2000, AB V - 1000
  • Can be profiled to nearly any designs according to drawing or sketch

Mounting holes included upon request.

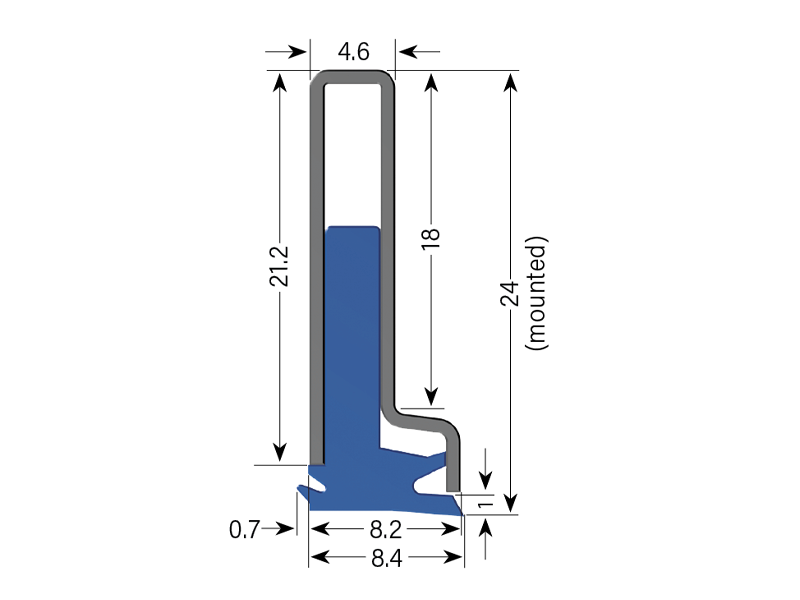

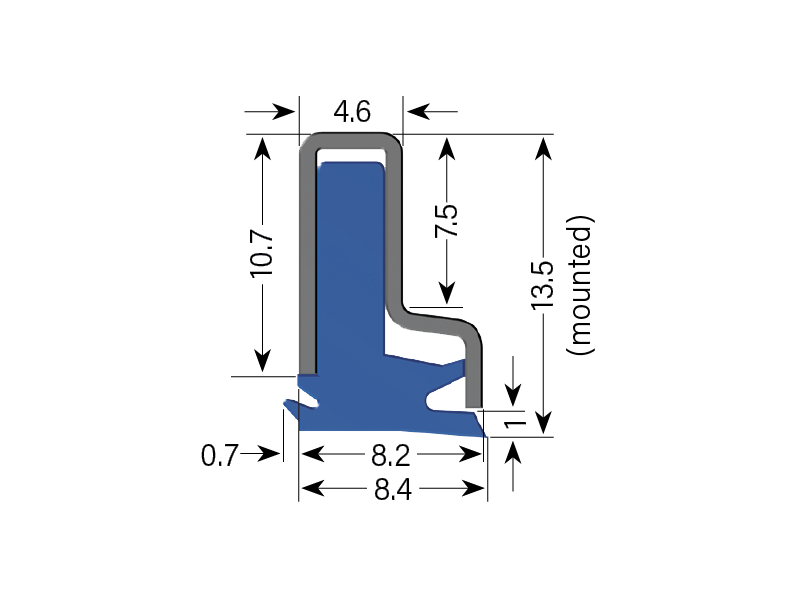

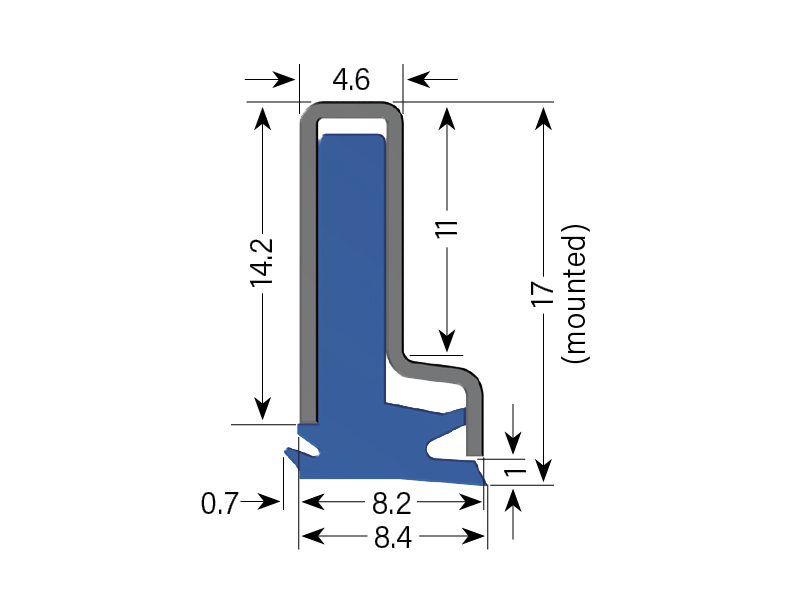

AB Wiper Dimensions
