Hennig

Work Truck Roll-Up Doors

ROLL-UP DOORS FOR WORK TRUCKS AND UTILITY VEHICLES

A SAFER WAY TO WORK

Work truck life is risky enough. Why add to the risk with standard hinged doors that can swing out into traffic, parked cars, or other obstacles? Aluminum roll-up doors from Hennig offer a compact, durable, and safe solution. Backed by extensive worldwide experience in providing roll-up products to the machinery industry, Hennig’s work truck roll-up doors represent the latest and most innovative features available today.

TECHNICAL DATA

Door Opening HeightMinimum Compartment DepthHeader HeightMaximum Roll Up DiameterDoor Opening WidthMaximum Internal Height
up to 2510.0002.5005.3751830
25-3510.5002.5006.0001940
36-5011.5003.2507.2502056
51-6011.8753.8757.7502160
61-7012.3754.2508.25022-2790
71-9013.5005.3759.37528-32100
91-10414.1256.50010.50033-78110

Top View

Side View

Features

Aluminum Slats
Lightweight, corrosion-resistant, and anodized slats promote long life

Double Wall Construction
Tight-tolerance interlocking joints with seals prevent water and dirt from entering the compartment

Rubber Idler Wheel
Provides quiet operation

Lift Bar
Easy operation with rigid, stainless steel lift bar

Bottom-bulb Seal
Eliminates distortion and provides a tighter seal

Side Rail
Ensures a low-profile, low-friction seal

Top Rail
Provides a gutter and sealed design

Bottom Sill Plate
Water dam provides additional protection against wear

Benefits

Safety
Keeps personnel safe by allowing them to remain closer to the vehicle
Eliminates damage associated with swing-out doors

Security
Durable aluminum profile construction
Manual locking

Appearance
Anodized aluminum profiles

Durability
Slant interlocks and seal designs
No metal-to-metal contact

HENNIG HELPS RESOURCE HUB

A destination for manufacturers who simply don't have time for downtime—we're here to help make you successful.

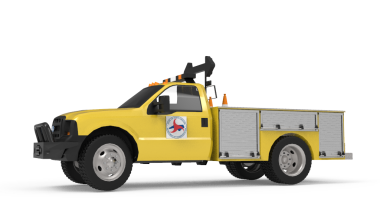

PREVENTING WORK TRUCK DAMAGE WITH ROLL-UP DOORS

If you’ve ever parked a utility truck with hinged doors on the roadside, you know how scary it can be. It's hard to concentrate on work while praying that passing cars and trucks don't smash into the open door, causing damage to both vehicles and possibly injuries.

Find out how Hennig uses roll-up doors to create a safer environment for work truck operators.
