Unbeatable retention and quick changes with rigid, precise steep taper drawbars for automatic tool changers.
OTT-JAKOB’s automatic drawbars and grippers deliver unmatched performance and reliability. Engineered for high clamp force, consistent tool retention, and extended service life, these components are trusted by leading machine tool builders around the world.
| Key Advantages | |
| Universal Spindle Compatibility | OTT-JAKOB’s specially developed spindle inside contour allows the use of multiple tool standards (ANSI, DIN, MAS etc.) in the same spindle—maximizing machine flexibility. |
| Force Intensifying Mechanism | A maintenance-free force intensifier at the back of the spindle shaft boosts clamping force while ensuring reliable, long-term performance. |
| High Pull-In Force with Compact Design | | Power drawbars deliver maximum clamping force in a compact package—reducing release forces, lowering spindle bearing load, and simplifying balancing. |
| Self-Locking System | Effectively prevents frictional corrosion and vibration damage to the spindle taper, extending spindle life and maintaining machining accuracy. |
| Optional Integrated Monitoring | Sensor packages offer tool presence detection and real-time monitoring of clamping force for enhanced safety and reliability. |
Patented force intensifying technology ensures your tools remain secure in even the most demanding applications.
Designed for SK/CAT steep taper systems, these drawbars and grippers meet or exceed OEM standards—delivering the durability and precision required in high-production CNC environments.
Compatible with all major machine interfaces and optional sensor packages for easy integration with automatic tool changers.
Thanks to OTT-JAKOB’s specially developed spindle inside contour, various tool standards (ANSI, DIN, MAS, etc.) can be used in the same spindle—ensuring flexibility and compatibility across your machine fleet.

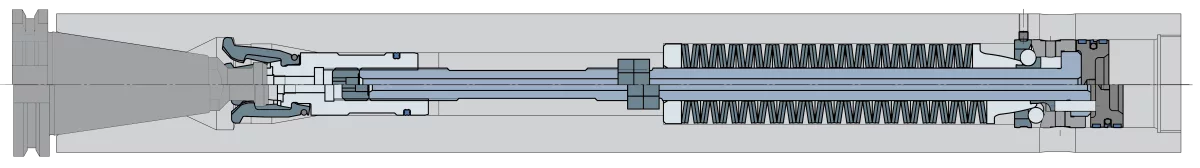

With the inside spindle drawbar, the force intensifying mechanism is in a cylinder behind the spindle shaft. Due to the position of the gearing, the position of the clamping system can be monitored with ease. The ES configuration is suitable for applications involving spindle speeds of up to 10,000 rpm.
In order to ensure that our steep taper clamping systems can also be used at higher speeds, the structure of the spindle integrated drawbar was kept as compact as possible by the force intensifying mechanism built into the spindle shaft. This allows for rotation speeds far higher than 10,000 rpm.
In the machining process, it can often be difficult for machinists to chase down the source of particular issues. Poor surface finish, rapid tool wear, taper corrosion, machine downtime, and tool breakage can each have multiple causes. However, there is one thing that can impact all of these: the pull-force of a spindle’s tool clamping system.
.webp)
Choosing the wrong tool clamping system partner can be a serious mistake. Old-school CNC machine tool clamping solutions may need extra maintenance, experience shorter lives, and can even be hazardous to operators. So, what do we recommend? OTT-JAKOB!
We’re all familiar with the products of Industry 4.0--it encompasses the smartphones in our pockets and tire pressure monitors in our cars. Learn how OTT-JAKOB is bringing the fourth industrial revolution to your spindle.
