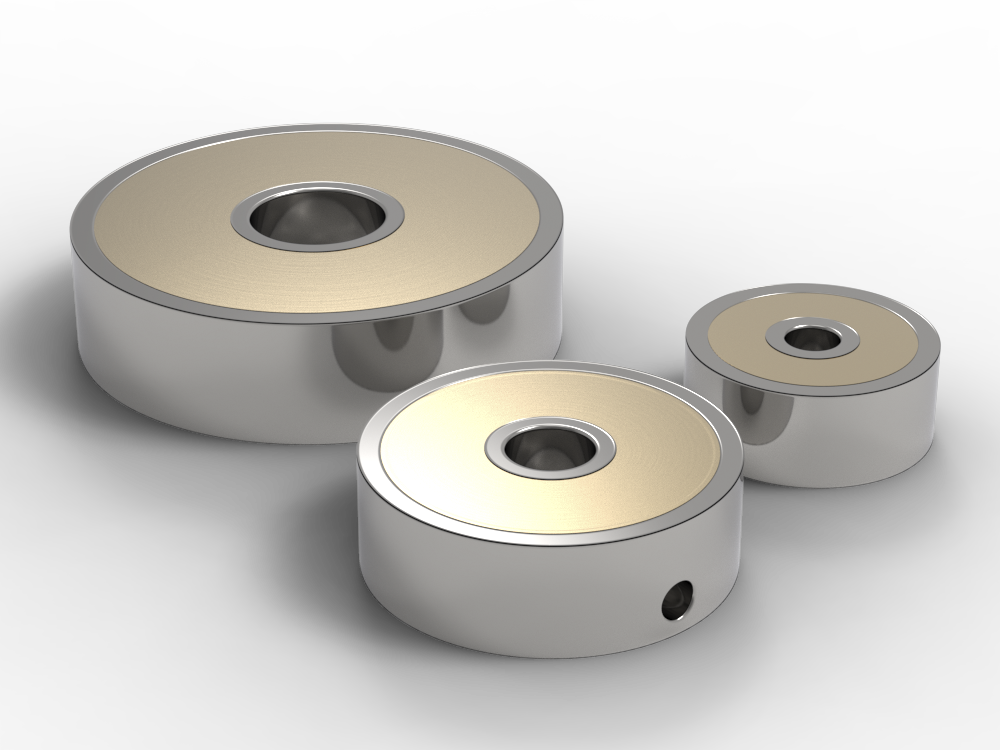

Hydraulic clamp rings provide a secure, friction-locked shaft-hub connection in a compact, easy-to-install design. Engineered for high torque transmission without backlash, they ensure reliable, vibration-resistant performance across a variety of mechanical and automation applications. With uniform force distribution and maintenance-friendly construction, these clamp rings are the ideal choice for achieving precise, repeatable shaft-hub connections in demanding industrial environments.

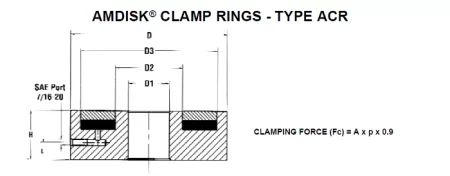

| Product ID | 3D CAD | Buy Online | øD | ød₁ | H | L | ød₂ (mm) | ød₃ (mm) | Area | Max Stroke | Clamp Force @ 1000 | Clamp Force @ 4000 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACR-60 | 2.36 in (60 mm) | 0.563 in (14.3 mm) | 1.18 in (30 mm) | .31 in (8 mm) | 24 mm | 50 mm | 2.34 in² (1512 mm²) | 0.118 in (3 mm) | 2100 lbf (9.3 kN) | 8450 lbf (37.6 kN) | |||
| ACR-75 | 2.95 in (75 mm) | 0.642 in (16.3 mm) | 1.18 in (30 mm) | .31 in (8 mm) | 28 mm | 62 mm | 3.72 in² (2403 mm²) | 0.118 in (3 mm) | 3350 lbf (14.9 kN) | 13400 lbf (59.6 kN) | |||
| ACR-90 | 3.54 in (90 mm) | 0.799 in (20.3 mm) | 1.26 in (32 mm) | .31 in (8 mm) | 32 mm | 75 mm | 5.60 in² (3614 mm²) | 0.157 in (4 mm) | 5050 lbf (22.5 kN) | 20200 lbf (89.9 kN) | |||
| ACR-105 | 4.13 in (105 mm) | 0.965 in (24.5 mm) | 1.34 in (34 mm) | .39 in (10 mm) | 36 mm | 92 mm | 8.73 in² (5630 mm²) | 0.157 in (4 mm) | 7900 lbf (35.1 kN) | 31500 lbf (140.1 kN) | |||
| ACR-125 | 4.92 in (125 mm) | 1.201 in (30.5 mm) | 1.42 in (36 mm) | .39 in (10 mm) | 42 mm | 112 mm | 13.12 in² (8467 mm²) | 0.197 in (5 mm) | 11800 lbf (52.5 kN) | 47200 lbf (210.0 kN) | |||
| ACR-155 | 6.10 in (155 mm) | 1.673 in (42.5 mm) | 1.57 in (40 mm) | .39 in (10 mm) | 55 mm | 140 mm | 20.18 in² (13018 mm²) | 0.197 in (5 mm) | 18200 lbf (81.0 kN) | 72600 lbf (322.9 kN) |
Each model below is routed to the best next step based on availability.
