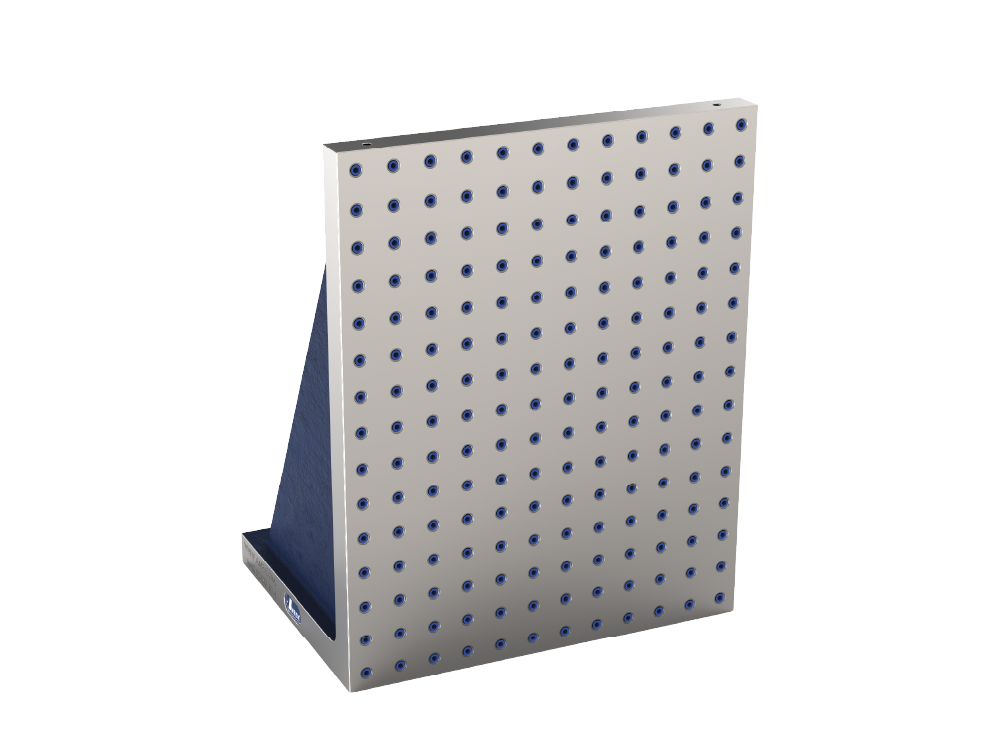

Single Angle Tombstones
Quality is built on a precision foundation
If a plain-face tombstone is not desired, the grid systems for our single angle tombstones that are available include industry standard 2" grid, t-slots, and custom grids.
| Key Features |
| Grid holes, bushings, and inserts are available for both 1/2" and 5/8" systems |
| Hardened, threaded inserts allow for clamping in every hole while offering quick and easy replaceability |
| Hardened, precision bushings are accurately located to ensure easy locating coupled with high wear resistance |
| Replacement bushings and insert kits with an extraction tool are available upon request |
Single Angle Tombstones
Technical Specifications
CAD Downloads: CAD download is for a plain face tombstone, all measurements are in inches unless otherwise noted, all weights are in pounds and include base plate.
93
Models
93
CAD Available
| Tolerance | Precision |
| Flatness (tombstones & plates) | 0.0005 / 12x12 |
| Parallelism (plates) | .0005 / 12 Max .002 total |
| Perpendicularity | .0008 / 12 Min .001, Max .002/48 |
| Surface Finish | 63 RMS |
| Face Thickness | ≤18” = ±.002, >18” = ±.003 |
| Tapped Holes (non-accumulative) | ±.005 |
| Precision Bushing I.D. | +0.0013 / +0.0007 |
| Precision Bushing Concentricity | 0.0001 |
| Bored or Precision Bushing Hole to Adjacent Hole | ±0.0005 |
| First Row Bushing Hole Location from Datums | ±.002 |
| Bored or Precision Bushing Hole Spacing (non-accumulative) | 0-10 ±.0005*, 10-20 ±.0008, 20-30 ±.0010, 30-40 ±.0012 |
*For aluminum, add 50% to these tolerances.
| Product ID | 3D CAD | Buy Online | A (in) | C (in) | D (in) | E (in) | F (in) | G (in) | Weight (lbs) | Grid Style | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AMR-S0406-06 | 4.00 | 6.00 | 6.00 | 1.60 | 1.60 | - | 20 | None | |||
| AMR-S0406-06-50 | 4.00 | 6.00 | 6.00 | 1.60 | 1.60 | 1.000 | 20 | 1/2" | |||
| AMR-S0406-06-62 | 4.00 | 6.00 | 6.00 | 1.60 | 1.60 | 1.000 | 20 | 5/8" | |||
| AMR-S0408-08 | 4.00 | 8.00 | 8.00 | 1.60 | 1.60 | - | 34 | None | |||
| AMR-S0408-08-50 | 4.00 | 8.00 | 8.00 | 1.60 | 1.60 | 1.000 | 34 | 1/2" | |||
| AMR-S0408-08-62 | 4.00 | 8.00 | 8.00 | 1.60 | 1.60 | 1.000 | 34 | 5/8" | |||
| AMR-S0410-08 | 4.00 | 10.00 | 8.00 | 1.60 | 1.60 | - | 36 | None | |||
| AMR-S0410-08-50 | 4.00 | 10.00 | 8.00 | 1.60 | 1.60 | 1.000 | 36 | 1/2" | |||
| AMR-S0410-08-62 | 4.00 | 10.00 | 8.00 | 1.60 | 1.60 | 1.000 | 36 | 5/8" | |||
| AMR-S0412-09 | 4.00 | 12.00 | 9.00 | 1.60 | 1.60 | - | 46 | None | |||
| AMR-S0412-09-50 | 4.00 | 12.00 | 9.00 | 1.60 | 1.60 | 1.000 | 46 | 1/2" | |||
| AMR-S0412-09-62 | 4.00 | 12.00 | 9.00 | 1.60 | 1.60 | 1.000 | 46 | 5/8" | |||
| AMR-S0416-10 | 4.00 | 16.00 | 10.00 | 2.00 | 2.00 | - | 63 | None | |||
| AMR-S0416-10-50 | 4.00 | 16.00 | 10.00 | 2.00 | 2.00 | 1.000 | 63 | 1/2" | |||
| AMR-S0416-10-62 | 4.00 | 16.00 | 10.00 | 2.00 | 2.00 | 1.000 | 63 | 5/8" | |||
| AMR-S0420-10 | 4.00 | 20.00 | 10.00 | 2.00 | 2.00 | - | 86 | None | |||
| AMR-S0420-10-50 | 4.00 | 20.00 | 10.00 | 2.00 | 2.00 | 1.000 | 86 | 1/2" | |||
| AMR-S0420-10-62 | 4.00 | 20.00 | 10.00 | 2.00 | 2.00 | 1.000 | 86 | 5/8" | |||
| AMR-S0812-10 | 8.00 | 12.00 | 10.00 | 1.60 | 1.60 | - | 73 | None | |||
| AMR-S0812-10-50 | 8.00 | 12.00 | 10.00 | 1.60 | 1.60 | 1.000 | 73 | 1/2" | |||
| AMR-S0812-10-62 | 8.00 | 12.00 | 10.00 | 1.60 | 1.60 | 1.000 | 73 | 5/8" | |||
| AMR-S0816-10 | 8.00 | 16.00 | 10.00 | 1.60 | 1.60 | - | 89 | None | |||
| AMR-S0816-10-50 | 8.00 | 16.00 | 10.00 | 1.60 | 1.60 | 1.000 | 89 | 1/2" | |||
| AMR-S0816-10-62 | 8.00 | 16.00 | 10.00 | 1.60 | 1.60 | 1.000 | 89 | 5/8" | |||
| AMR-S0820-14 | 8.00 | 20.00 | 14.00 | 1.60 | 1.60 | - | 137 | None | |||
| AMR-S0820-14-50 | 8.00 | 20.00 | 14.00 | 1.60 | 1.60 | 1.000 | 137 | 1/2" | |||
| AMR-S0820-14-62 | 8.00 | 20.00 | 14.00 | 1.60 | 1.60 | 1.000 | 137 | 5/8" | |||
| AMR-S0840-18 | 8.00 | 40.00 | 18.00 | 2.25 | 2.25 | - | 359 | None | |||
| AMR-S0840-18-50 | 8.00 | 40.00 | 18.00 | 2.25 | 2.25 | 1.000 | 359 | 1/2" | |||
| AMR-S0840-18-62 | 8.00 | 40.00 | 18.00 | 2.25 | 2.25 | 1.000 | 359 | 5/8" | |||
| AMR-S1218-14 | 12.00 | 18.00 | 14.00 | 1.60 | 1.60 | - | 160 | None | |||
| AMR-S1218-14-50 | 12.00 | 18.00 | 14.00 | 1.60 | 1.60 | 1.000 | 160 | 1/2" | |||
| AMR-S1218-14-62 | 12.00 | 18.00 | 14.00 | 1.60 | 1.60 | 1.000 | 160 | 5/8" | |||
| AMR-S1219-10 | 12.00 | 18.75 | 10.00 | 2.00 | 2.00 | - | 158 | None | |||
| AMR-S1219-10-50 | 12.00 | 18.75 | 10.00 | 2.00 | 2.00 | 1.000 | 158 | 1/2" | |||
| AMR-S1219-10-62 | 12.00 | 18.75 | 10.00 | 2.00 | 2.00 | 1.000 | 158 | 5/8" | |||
| AMR-S1224-15 | 12.00 | 24.00 | 15.00 | 2.00 | 2.00 | - | 248 | None | |||
| AMR-S1224-15-50 | 12.00 | 24.00 | 15.00 | 2.00 | 2.00 | 1.000 | 248 | 1/2" | |||
| AMR-S1224-15-62 | 12.00 | 24.00 | 15.00 | 2.00 | 2.00 | 1.000 | 248 | 5/8" | |||
| AMR-S1230-15 | 12.00 | 30.00 | 15.00 | 2.00 | 2.00 | - | 290 | None | |||
| AMR-S1230-15-50 | 12.00 | 30.00 | 15.00 | 2.00 | 2.00 | 1.000 | 290 | 1/2" | |||
| AMR-S1230-15-62 | 12.00 | 30.00 | 15.00 | 2.00 | 2.00 | 1.000 | 290 | 5/8" | |||
| AMR-S1239-15 | 12.00 | 38.50 | 15.00 | 2.00 | 2.00 | - | 350 | None | |||
| AMR-S1239-15-50 | 12.00 | 38.50 | 15.00 | 2.00 | 2.00 | 1.000 | 350 | 1/2" | |||
| AMR-S1239-15-62 | 12.00 | 38.50 | 15.00 | 2.00 | 2.00 | 1.000 | 350 | 5/8" | |||
| AMR-S1240-18 | 12.00 | 40.00 | 17.75 | 2.50 | 2.50 | - | 487 | None | |||
| AMR-S1240-18-50 | 12.00 | 40.00 | 17.75 | 2.50 | 2.50 | 1.000 | 487 | 1/2" | |||
| AMR-S1240-18-62 | 12.00 | 40.00 | 17.75 | 2.50 | 2.50 | 1.000 | 487 | 5/8" | |||
| AMR-S1620-14 | 16.00 | 20.00 | 14.00 | 2.00 | 2.00 | - | 257 | None | |||
| AMR-S1620-14-50 | 16.00 | 20.00 | 14.00 | 2.00 | 2.00 | 1.000 | 257 | 1/2" | |||
| AMR-S1620-14-62 | 16.00 | 20.00 | 14.00 | 2.00 | 2.00 | 1.000 | 257 | 5/8" | |||
| AMR-S1624-18 | 16.00 | 24.00 | 17.75 | 2.00 | 2.00 | - | 341 | None | |||
| AMR-S1624-18-50 | 16.00 | 24.00 | 17.75 | 2.00 | 2.00 | 1.000 | 341 | 1/2" | |||
| AMR-S1624-18-62 | 16.00 | 24.00 | 17.75 | 2.00 | 2.00 | 1.000 | 341 | 5/8" | |||
| AMR-S1630-18 | 16.00 | 30.00 | 18.00 | 2.00 | 2.00 | - | 397 | None | |||
| AMR-S1630-18-50 | 16.00 | 30.00 | 18.00 | 2.00 | 2.00 | 1.000 | 397 | 1/2" | |||
| AMR-S1630-18-62 | 16.00 | 30.00 | 18.00 | 2.00 | 2.00 | 1.000 | 397 | 5/8" | |||
| AMR-S1816-13 | 18.00 | 16.00 | 13.00 | 1.60 | 1.60 | - | 187 | None | |||
| AMR-S1816-13-50 | 18.00 | 16.00 | 13.00 | 1.60 | 1.60 | - | 187 | 1/2" | |||
| AMR-S1816-13-62 | 18.00 | 16.00 | 13.00 | 1.60 | 1.60 | - | 187 | 5/8" | |||
| AMR-S1822-13 | 18.00 | 22.00 | 13.00 | 2.00 | 2.00 | - | 283 | None | |||
| AMR-S1822-13-50 | 18.00 | 22.00 | 13.00 | 2.00 | 2.00 | - | 283 | 1/2" | |||
| AMR-S1822-13-62 | 18.00 | 22.00 | 13.00 | 2.00 | 2.00 | - | 283 | 5/8" | |||
| AMR-S1824-15 | 18.00 | 24.00 | 15.00 | 2.00 | 2.00 | - | 329 | None | |||
| AMR-S1824-15-50 | 18.00 | 24.00 | 15.00 | 2.00 | 2.00 | - | 329 | 1/2" | |||
| AMR-S1824-15-62 | 18.00 | 24.00 | 15.00 | 2.00 | 2.00 | - | 329 | 5/8" | |||
| AMR-S1830-18 | 18.00 | 30.00 | 18.00 | 2.00 | 2.00 | - | 431 | None | |||
| AMR-S1830-18-50 | 18.00 | 30.00 | 18.00 | 2.00 | 2.00 | - | 431 | 1/2" | |||
| AMR-S1830-18-62 | 18.00 | 30.00 | 18.00 | 2.00 | 2.00 | - | 431 | 5/8" | |||
| AMR-S2026-15 | 20.00 | 26.00 | 15.00 | 2.00 | 2.00 | - | 374 | None | |||
| AMR-S2026-15-50 | 20.00 | 26.00 | 15.00 | 2.00 | 2.00 | 1.000 | 374 | 1/2" | |||
| AMR-S2026-15-62 | 20.00 | 26.00 | 15.00 | 2.00 | 2.00 | 1.000 | 374 | 5/8" | |||
| AMR-S2230-18 | 22.00 | 30.00 | 18.00 | 2.13 | 2.13 | - | 497 | None | |||
| AMR-S2230-18-50 | 22.00 | 30.00 | 18.00 | 2.13 | 2.13 | - | 497 | 1/2" | |||
| AMR-S2230-18-62 | 22.00 | 30.00 | 18.00 | 2.13 | 2.13 | - | 497 | 5/8" | |||
| AMR-S2424-12 | 24.00 | 24.00 | 12.00 | 2.00 | 2.00 | - | 253 | None | |||
| AMR-S2424-12-50 | 24.00 | 24.00 | 12.00 | 2.00 | 2.00 | 1.000 | 253 | 1/2" | |||
| AMR-S2424-12-62 | 24.00 | 24.00 | 12.00 | 2.00 | 2.00 | 1.000 | 253 | 5/8" | |||
| AMR-S2430-18 | 24.00 | 30.00 | 18.00 | 2.00 | 2.00 | - | 530 | None | |||
| AMR-S2430-18-50 | 24.00 | 30.00 | 18.00 | 2.00 | 2.00 | 1.000 | 530 | 1/2" | |||
| AMR-S2430-18-62 | 24.00 | 30.00 | 18.00 | 2.00 | 2.00 | 1.000 | 530 | 5/8" | |||
| AMR-S2448-18 | 24.00 | 48.00 | 18.00 | 2.25 | 2.25 | - | 920 | None | |||
| AMR-S2448-18-50 | 24.00 | 48.00 | 18.00 | 2.25 | 2.25 | 1.000 | 920 | 1/2" | |||
| AMR-S2448-18-62 | 24.00 | 48.00 | 18.00 | 2.25 | 2.25 | 1.000 | 920 | 5/8" | |||
| AMR-S3030-18 | 30.00 | 30.00 | 18.00 | 2.25 | 2.25 | - | 802 | None | |||
| AMR-S3030-18-50 | 30.00 | 30.00 | 18.00 | 2.25 | 2.25 | - | 802 | 1/2" | |||
| AMR-S3030-18-62 | 30.00 | 30.00 | 18.00 | 2.25 | 2.25 | - | 802 | 5/8" | |||
| AMR-S3040-24 | 30.00 | 40.00 | 24.00 | 2.50 | 2.50 | - | 1141 | None | |||
| AMR-S3040-24-50 | 30.00 | 40.00 | 24.00 | 2.50 | 2.50 | - | 1141 | 1/2" | |||
| AMR-S3040-24-62 | 30.00 | 40.00 | 24.00 | 2.50 | 2.50 | - | 1141 | 5/8" | |||
| AMR-S3248-31 | 32.00 | 48.00 | 30.50 | 2.25 | 2.25 | - | 1410 | None | |||
| AMR-S3248-31-50 | 32.00 | 48.00 | 30.50 | 2.25 | 2.25 | 1.000 | 1410 | 1/2" | |||
| AMR-S3248-31-62 | 32.00 | 48.00 | 30.50 | 2.25 | 2.25 | 1.000 | 1410 | 5/8" |
