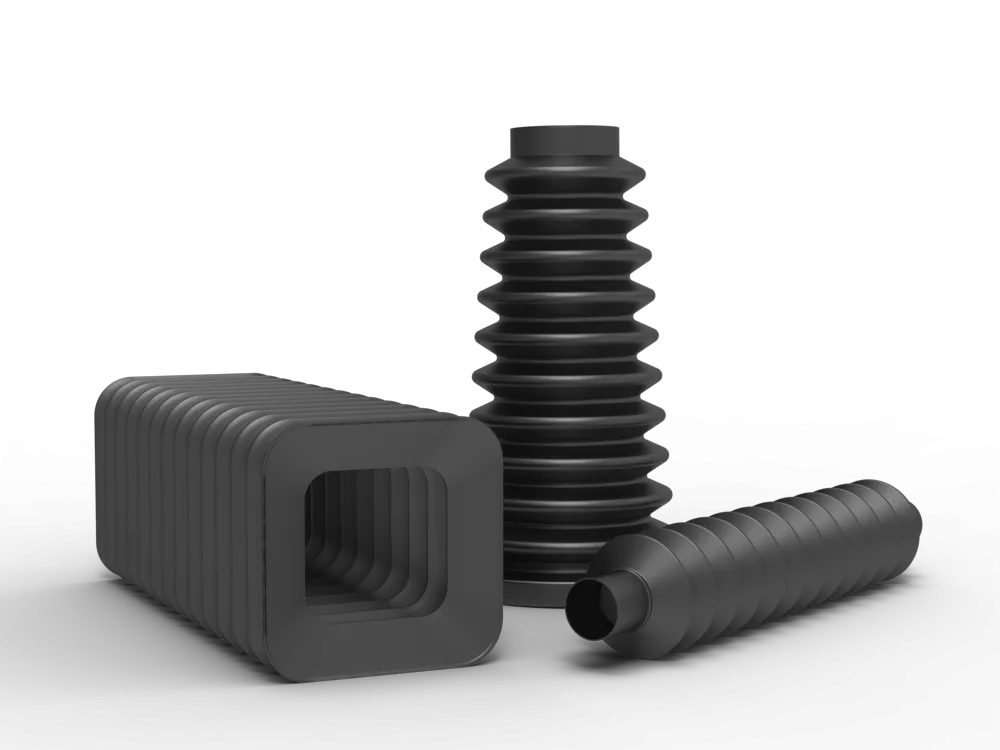

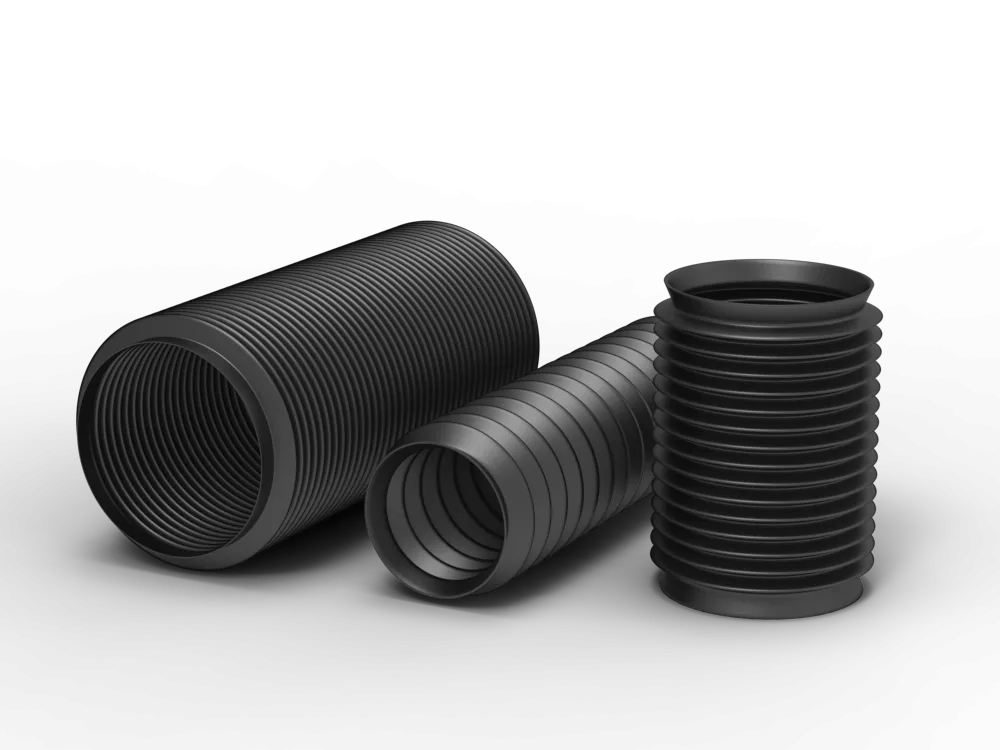

Rubber bellows are ideal for water, oil, chemicals, and high temperature environments and are primarily used for protecting lead screws, shafts, moving air cylinders, and irregular-shaped parts. Standard sizes, custom flange and sleeve shapes, as well as good extension/compression ratios allow for an almost unlimited number of variations.
| Material |
Thermal Properties (min-max) |
Hardness Range (Shore A) |
Resistant To |
| NBR |
-30°C - +110°C |
40 - 75 |
Gasoline, Mineral Oil |
| FPM |
-20°C - +200°C |
40 - 75 |
Gasoline, Mineral Oil, Acids, Lyes, Water, Weathering and Ozone, Air Impermeability |
| CR |
-35°C - +100°C |
40 - 75 |
Weathering and Ozone |
| EPDM |
-50°C - +130°C |
40 - 75 |
Acids, Lyes, Water, Weathering and Ozone |
| VMQ |
-65°C - +200°C |
40 - 75 |
Weathering and Ozone, Steam |
