Mobile Chip Conveyor

The mobile conveyor provides machine operators with a convenient way to lift chips into full size barrel or hopper-high receptacles.

Mobile Chip Conveyor

Convenient Chip-Lifting Conveyor

The mobile conveyor provides machine operators with a convenient way to lift chips into full size barrel or hopper-high receptacles. It reduces machine clean-out effort and eliminates back related fatigue. The portable conveyor can be used for periodic clean-out of multiple machines or dedicated full time to any machine generating high volumes of chips. Position the conveyor under the chip chute of any auger chip flume, plug it in, and turn it on. Coolant that collects in the conveyor will be carried out by the chips so the conveyor never requires draining. Variable speed drive (VFD) is standard.

Technical Specifications
Belt Type Hinge
Motor 1/8 HP
Reducer 240:1
Conveyor Chain 2060H
Speed 1.1 - 3.3 m/min
Capacity 448 in3/min
Safety Apparatus Current sensor
Chip Type Various types
Voltage 110V with plug
Paint Textured blue, white, gray, black

Which Conveyor
Is Right for Me?

Material
Chip Type
Space Constraints
Best Fit

View Details
Options

Adjustable Chip Chute

The opening of the chip hopper may be oriented directly toward the tail section of the conveyor, to the right, or to the left, by unscrewing the four bolts holding the hopper in place, removing it, rotating it to the desired position and bolting it back in place.

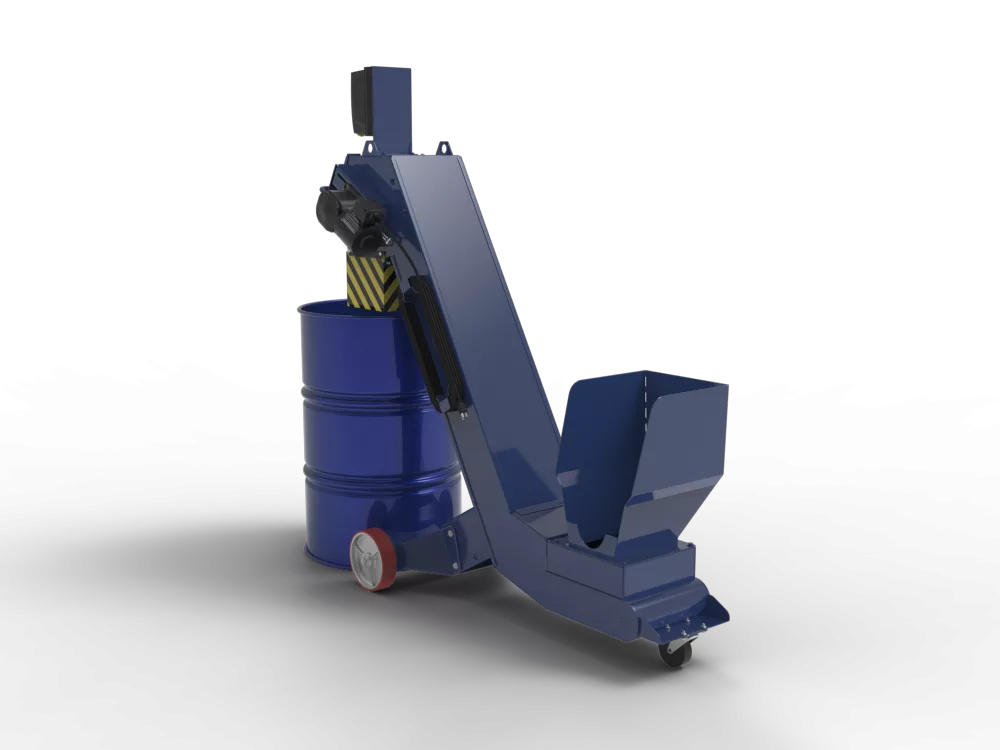

Chip chute to the left

Mobile Chip Conveyor

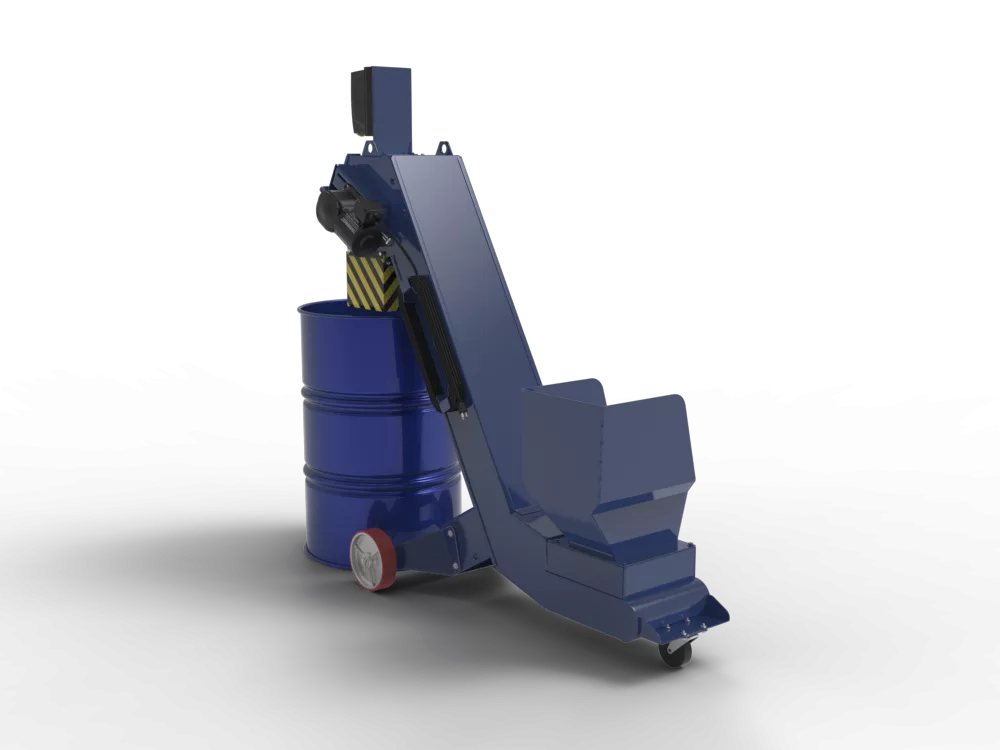

Chip chute to the right

Mobile Chip Conveyor

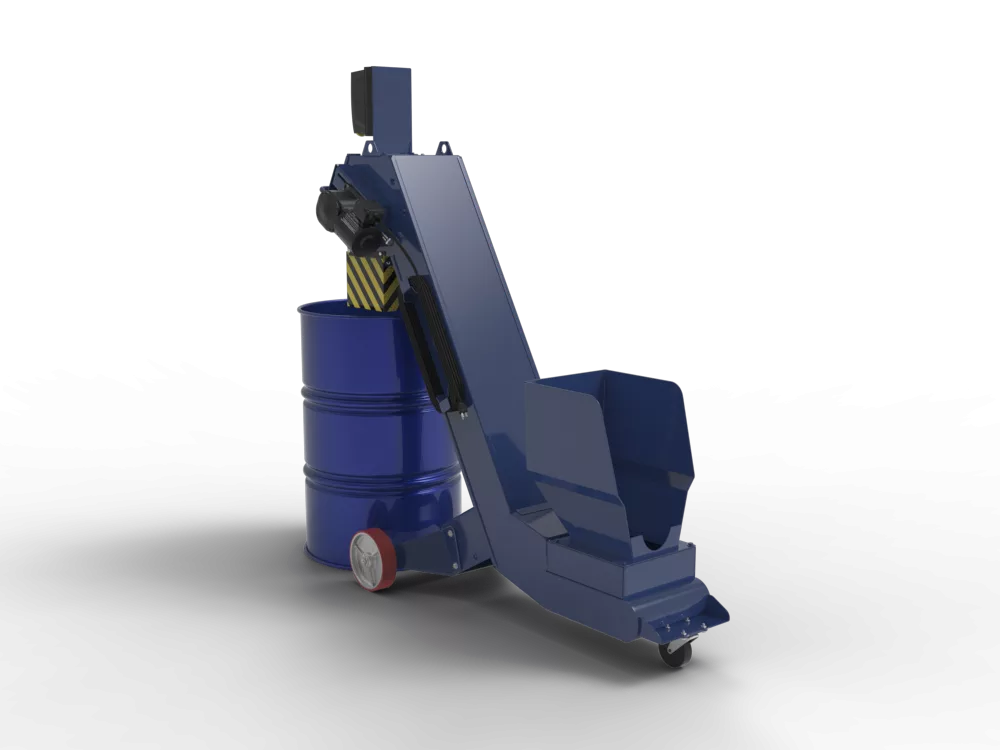

Chip chute facing conveyor tail

Mobile Chip Conveyor
