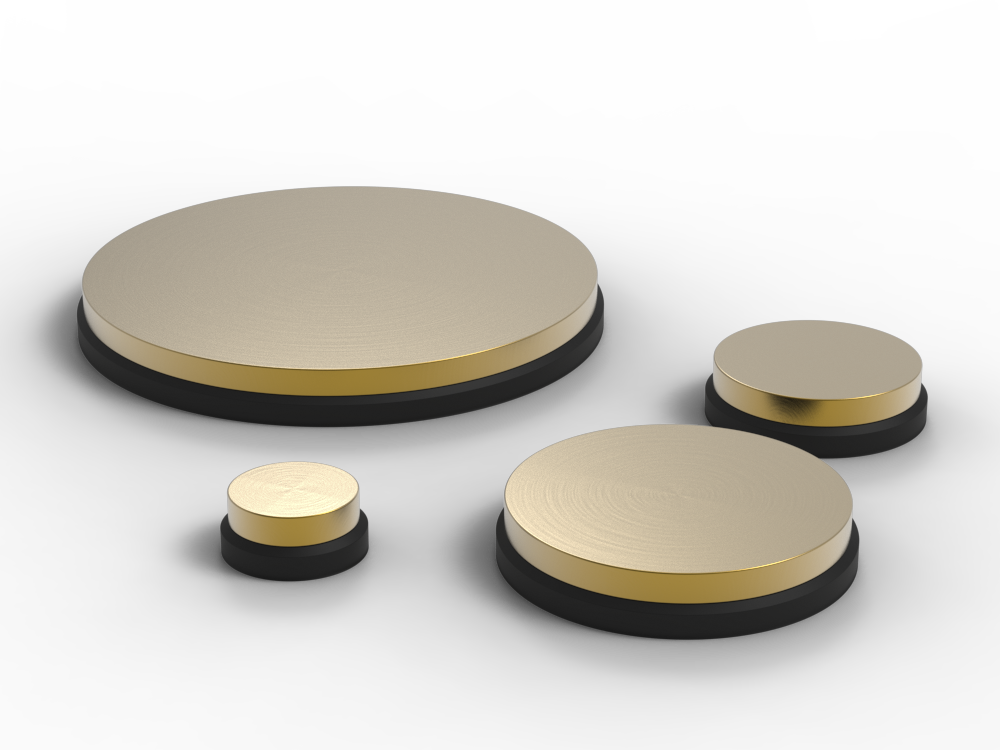

Hydraulic clamp disks provide friction-locked, backlash-free shaft-hub connections in a compact, maintenance-friendly design. These versatile components ensure uniform force distribution and high torque transmission, making them ideal for dynamic applications in machinery and automation. The unique construction offers easy assembly and disassembly, contributing to reduced downtime and increased efficiency across a wide range of industrial settings.

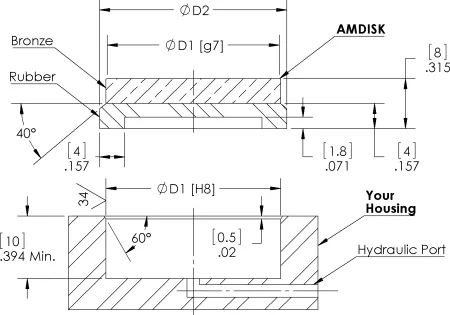

| Product ID | 3D CAD | Buy Online | øD | øD [h8] Bore Diameter | Area | Assembly Tool Number | Clamp Force @ 1000 | |
|---|---|---|---|---|---|---|---|---|
| ACD 16 | 0.630 in (16 mm) | .630/.631 in | .312 in² (201 mm²) | ACDT-16 | 300 lbf (1.3 kN) | |||
| ACD 22 | 0.866 in (22 mm) | .866/.867 in | .589 in² (380 mm²) | ACDT-22 | 560 lbf (2.5 kN) | |||
| ACD 28 | 1.102 in (28 mm) | 1.102/1.103 in | .955 in² (616 mm²) | ACDT-28 | 910 lbf (4.0 kN) | |||
| ACD 32 | 1.260 in (32 mm) | 1.260/1.261 in | 1.25 in² (804 mm²) | ACDT-32 | 1,200 lbf (5.3 kN) | |||
| ACD 42 | 1.654 in (42 mm) | 1.654/1.655 in | 2.15 in² (1,385 mm²) | ACDT-42 | 2,100 lbf (9.3 kN) | |||
| ACD 52 | 2.047 in (52 mm) | 2.047/2.049 in | 3.29 in² (2,2124 mm²) | ACDT-52 | 3,200 lbf (14.2 kN) | |||
| ACD 64 | 2.520 in (64 mm) | 2.520/2.522 in | 4.99 in² (3,217 mm²) | ACDT-64 | 4,800 lbf (21.4 kN) | |||
| ACD 75 | 2.953 in (75 mm) | 2.953/2.955 in | 6.85 in² (4,418 mm²) | ACDT-75 | 6,500 lbf (28.9 kN) |
