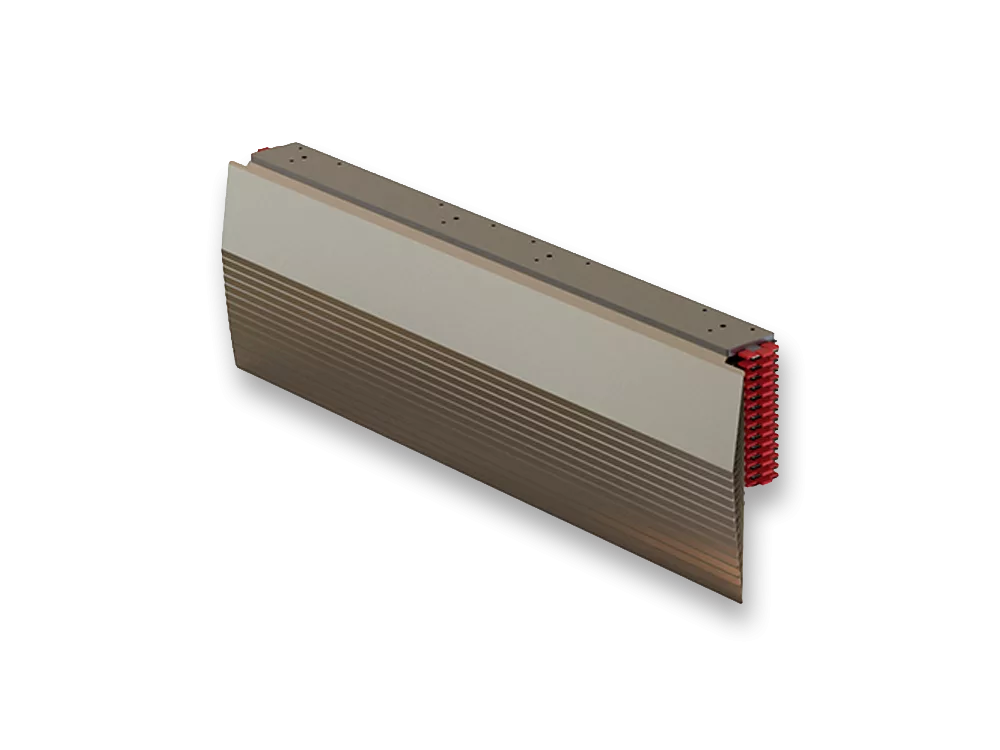

Modular Steel Lamella Bellows

This design offers lightweight, interlocking steel fins that connect modularly without requiring a folded bellow for support. Good for direct chip loads, weld splatter, red-hot and sharp-edged swarf, and high-speed applications. With an extremely high compression of 2.4 mm per fin, the entire machine stroke can be significantly increased.

Maximum Compression | Expand your entire machine stroke with micromodular lamella bellows. The newly designed plates interlock with each other, enabling a compression of 2.4mm per lamella.

Anti-Scratch Coating | A unique coating is added to each fin to prevent scratching, which significantly increases the life of the cover (up to 70%).  Additionaly, the coating increases the seal against coolant and chips (available for lamellas up to 1000 mm wide).

Easy Maintenance/Part Replacement | Each lamella can be replaced individually, meaning the entire system doesn’t have to be removed or disassembled if damage is done to the cover.

Optional Fabric Cover | For 100% seal against coolants, a fabric cover can be added. This option has all the compression benefits as the standard modular lamella bellow but with better sealing.

MicroFIN Modular Bellows By Hennig
