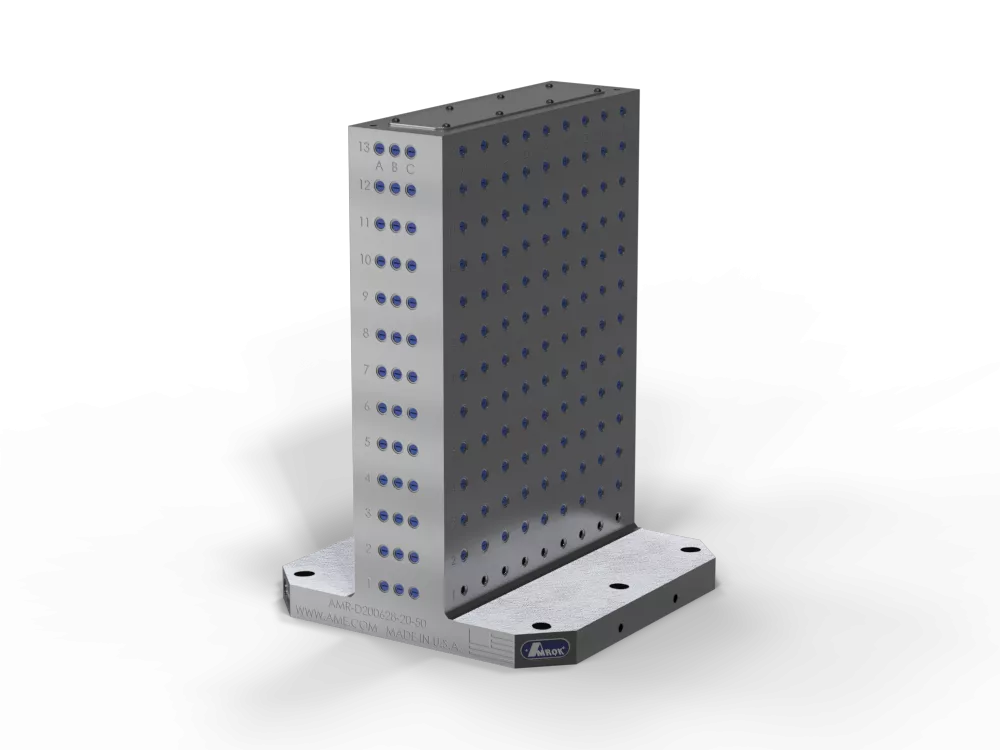

Double Angle Tombstones
Quality is built on a precision foundation
Double Angle tombstones are useful when a larger surface area is needed and also provides two-sided machining. If a plain-face tombstone is not desired, the grid systems for our double angle tombstones that are available include industry standard 2" grid, t-slots, and custom grids.
Did you know about our epoxy mineral tombstones?
- Minimal thermal expansion
- Reduces mass
- Impressive vibration damping
- Comparable to a traditional cast iron material choice
Overview Catalog
Learn about our full workholding line including CNC tombstones, workholding systems, Build on the Rock partners, and custom fixturing solutions.
Capabilities Brochure
Our reduced AMROK capabilities PDF offering a brief overview of our Workholding product selection.
Tombstone Testing for Dynamic Performance
Because tombstones support the workpiece during machining, their dynamic response becomes part of the entire system. The goal of this effort was to measure the dynamics individually and then as part of a machine set up. All tests were conducted by Dr. Tony L. Schmitz, a world renowned mechanical engineering professor at the University of Tennessee, Knoxville and Joint Faculty at Oak RIdge National Laboratory, who specializes in machine tool research and manufacturing engineering.
Double Angle Tombstone
Grid System
- Grid holes, bushings, and inserts are available for both 1/2" and 5/8" systems
- Hardened, threaded inserts allow for clamping in every hole while offering quick and easy replaceability
- Hardened, precision bushings are accurately located to ensure easy locating coupled with high wear resistance
- Replacement bushings and insert kits with an extraction tool are available upon request
| G | ∅D | L | L1 |
| UNC | inch | inch | inch |
| 1/2"-13 | .5007/.5013 | 0.53 | 1.44 |
| 5/8"-11 | .6257/.6263 | 0.78 | 1.69 |
Double Angle Tombstone
Tolerances
| Tolerance | Precision |
| Flatness (tombstones & plates) | 0.0005 / 12x12 |
| Parallelism (plates) | .0005 / 12 Max .002 total |
| Perpendicularity | .0008 / 12 Min .001, Max .002/48 |
| Surface Finish | 63 RMS |
| Face Thickness | ≤18” = ±.002, >18” = ±.003 |
| Tapped Holes (non-accumulative) | ±.005 |
| Precision Bushing I.D. | +0.0013 / +0.0007 |
| Precision Bushing Concentricity | 0.0001 |
| Bored or Precision Bushing Hole to Adjacent Hole | ±0.0005 |
| First Row Bushing Hole Location from Datums | ±.002 |
| Bored or Precision Bushing Hole Spacing (non-accumulative) | 0-10 ±.0005*, 10-20 ±.0008, 20-30 ±.0010, 30-40 ±.0012 |
*For aluminum, add 50% to these tolerances.
Double Angle Tombstone
Technical Specifications & CAD
186
Models
185
CAD Available
CAD Downloads: CAD download is for a plain face tombstone, all measurements are in inches unless otherwise noted, all weights are in pounds and include base plate.
| Product ID | 3D CAD | Buy Online | A (in) | B (in) | B1 (in) | C (in) | D (in) | E (in) | F (in) | G (in) | Weight (lbs) | Grid Style | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AMR-D120316-12 | 11.81 (300mm) | 11.811 | 3.000 | 16.0 | Upon Request | Upon Request | 1.50 | - | 190 | Plain Face | |||
| AMR-D120316-12-50 | 11.81 (300mm) | 11.811 | 3.000 | 16.0 | Upon Request | Upon Request | 1.50 | 3.000 | 190 | UNC 1/2"-13 | |||
| AMR-D120416-12 | 11.81 (300mm) | 11.811 | 4.000 | 16.0 | Upon Request | Upon Request | 1.50 | - | 235 | Plain Face | |||
| AMR-D120416-12-50 | 11.81 (300mm) | 11.811 | 4.000 | 16.0 | Upon Request | Upon Request | 1.50 | 3.000 | 235 | UNC 1/2"-13 | |||
| AMR-D120416-12-62 | 11.81 (300mm) | 11.811 | 4.000 | 16.0 | Upon Request | Upon Request | 1.50 | 3.000 | 235 | UNC 5/8"-11 | |||
| AMR-D120324-16 | 15.75 (400mm) | 12.000 | 3.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | - | 310 | Plain Face | |||
| AMR-D120324-16-50 | 15.75 (400mm) | 12.000 | 3.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 310 | UNC 1/2"-13 | |||
| AMR-D120422-16 | 15.75 (400mm) | 12.000 | 4.000 | 22.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | - | 370 | Plain Face | |||
| AMR-D120422-16-50 | 15.75 (400mm) | 12.000 | 4.000 | 22.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 370 | UNC 1/2"-13 | |||
| AMR-D120422-16-62 | 15.75 (400mm) | 12.000 | 4.000 | 22.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 370 | UNC 5/8"-11 | |||
| AMR-D160318-16 | 15.75 (400mm) | 15.748 | 3.000 | 18.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | - | 300 | Plain Face | |||
| AMR-D160318-16-50 | 15.75 (400mm) | 15.748 | 3.000 | 18.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 300 | UNC 1/2"-13 | |||
| AMR-D160324-16 | 15.75 (400mm) | 15.748 | 3.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | - | 375 | Plain Face | |||
| AMR-D160324-16-50 | 15.75 (400mm) | 15.748 | 3.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 375 | UNC 1/2"-13 | |||
| AMR-D160420-16 | 15.75 (400mm) | 15.748 | 4.000 | 20.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | - | 395 | Plain Face | |||
| AMR-D160420-16-50 | 15.75 (400mm) | 15.748 | 4.000 | 20.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 395 | UNC 1/2"-13 | |||
| AMR-D160420-16-62 | 15.75 (400mm) | 15.748 | 4.000 | 20.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 395 | UNC 5/8"-11 | |||
| AMR-D160424-16 | 15.75 (400mm) | 15.748 | 4.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | - | 485 | Plain Face | |||
| AMR-D160424-16-50 | 15.75 (400mm) | 15.748 | 4.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 485 | UNC 1/2"-13 | |||
| AMR-D160424-16-62 | 15.75 (400mm) | 15.748 | 4.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 485 | UNC 5/8"-11 | |||
| AMR-D160426-16 | 15.75 (400mm) | 15.748 | 4.000 | 26.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | - | 520 | Plain Face | |||
| AMR-D160426-16-50 | 15.75 (400mm) | 15.748 | 4.000 | 26.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 520 | UNC 1/2"-13 | |||
| AMR-D160426-16-62 | 15.75 (400mm) | 15.748 | 4.000 | 26.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 520 | UNC 5/8"-11 | |||
| AMR-D160428-16 | 15.75 (400mm) | 15.748 | 4.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | - | 555 | Plain Face | |||
| AMR-D160428-16-50 | 15.75 (400mm) | 15.748 | 4.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 555 | UNC 1/2"-13 | |||
| AMR-D160428-16-62 | 15.75 (400mm) | 15.748 | 4.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 555 | UNC 5/8"-11 | |||
| AMR-D160528-16 | 15.75 (400mm) | 15.748 | 5.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | - | 645 | Plain Face | |||
| AMR-D160528-16-50 | 15.75 (400mm) | 15.748 | 5.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 645 | UNC 1/2"-13 | |||
| AMR-D160528-16-62 | 15.75 (400mm) | 15.748 | 5.000 | 28.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.000 | 645 | UNC 5/8"-11 | |||
| AMR-D160624-16 | 15.75 (400mm) | 15.748 | 6.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | - | 535 | Plain Face | |||
| AMR-D160624-16-50 | 15.75 (400mm) | 15.748 | 6.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 535 | UNC 1/2"-13 | |||
| AMR-D160624-16-62 | 15.75 (400mm) | 15.748 | 6.000 | 24.0 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 2.00 | 3.000 | 535 | UNC 5/8"-11 | |||
| AMRE-D160822-16 | 15.75 (400mm) | 16.000 | 8.000 | 21.5 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.500 | 375 | UNC 1/2"-13 | |||
| AMRE-D160824-16 | 15.75 (400mm) | 16.000 | 8.000 | 23.5 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.500 | 405 | UNC 1/2"-13 | |||
| AMRE-D160826-16 | 15.75 (400mm) | 16.000 | 8.000 | 25.5 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.500 | 430 | UNC 1/2"-13 | |||
| AMRE-D160828-16 | 15.75 (400mm) | 16.000 | 8.000 | 27.5 | 11.811 (300mm) to 12.598 (320mm) | 4.331 (110mm) | 1.50 | 3.500 | 460 | UNC 1/2"-13 | |||
| AMR-D120624-20 | 19.69 (500mm) | 12.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 525 | Plain Face | |||
| AMR-D120624-20-50 | 19.69 (500mm) | 12.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 525 | UNC 1/2"-13 | |||
| AMR-D120624-20-62 | 19.69 (500mm) | 12.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 525 | UNC 5/8"-11 | |||
| AMR-D120628-20 | 19.69 (500mm) | 12.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 580 | Plain Face | |||
| AMR-D120628-20-50 | 19.69 (500mm) | 12.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 580 | UNC 1/2"-13 | |||
| AMR-D120628-20-62 | 19.69 (500mm) | 12.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 580 | UNC 5/8"-11 | |||
| AMRE-D160822-20 | 19.69 (500mm) | 16.000 | 8.000 | 21.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 435 | UNC 1/2"-13 | |||
| AMRE-D160824-20 | 19.69 (500mm) | 16.000 | 8.000 | 23.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 465 | UNC 1/2"-13 | |||
| AMR-D160624-20 | 19.69 (500mm) | 16.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 615 | Plain Face | |||
| AMR-D160624-20-50 | 19.69 (500mm) | 16.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 615 | UNC 1/2"-13 | |||
| AMR-D160624-20-62 | 19.69 (500mm) | 16.000 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 615 | UNC 5/8"-11 | |||
| AMRE-D160826-20 | 19.69 (500mm) | 16.000 | 8.000 | 25.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 490 | UNC 1/2"-13 | |||
| AMRE-D160828-20 | 19.69 (500mm) | 16.000 | 8.000 | 27.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 515 | UNC 1/2"-13 | |||
| AMR-D160628-20 | 19.69 (500mm) | 16.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 690 | Plain Face | |||
| AMR-D160628-20-50 | 19.69 (500mm) | 16.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 690 | UNC 1/2"-13 | |||
| AMR-D160628-20-62 | 19.69 (500mm) | 16.000 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 690 | UNC 5/8"-11 | |||
| AMR-D200324-20 | 19.69 (500mm) | 19.685 | 3.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 540 | Plain Face | |||
| AMR-D200324-20-50 | 19.69 (500mm) | 19.685 | 3.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 540 | UNC 1/2"-13 | |||
| AMR-D200424-20 | 19.69 (500mm) | 19.685 | 4.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 655 | Plain Face | |||
| AMR-D200424-20-50 | 19.69 (500mm) | 19.685 | 4.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 655 | UNC 1/2"-13 | |||
| AMR-D200424-20-62 | 19.69 (500mm) | 19.685 | 4.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 655 | UNC 5/8"-11 | |||
| AMR-D200624-20 | 19.69 (500mm) | 19.685 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 700 | Plain Face | |||
| AMR-D200624-20-50 | 19.69 (500mm) | 19.685 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 700 | UNC 1/2"-13 | |||
| AMR-D200624-20-62 | 19.69 (500mm) | 19.685 | 6.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 700 | UNC 5/8"-11 | |||
| AMR-D200824-20 | 19.69 (500mm) | 19.685 | 8.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 805 | Plain Face | |||
| AMR-D200824-20-50 | 19.69 (500mm) | 19.685 | 8.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 805 | UNC 1/2"-13 | |||
| AMR-D200824-20-62 | 19.69 (500mm) | 19.685 | 8.000 | 24.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 805 | UNC 5/8"-11 | |||
| AMR-D200428-20 | 19.69 (500mm) | 19.685 | 4.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 735 | Plain Face | |||
| AMR-D200428-20-50 | 19.69 (500mm) | 19.685 | 4.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 735 | UNC 1/2"-13 | |||
| AMR-D200428-20-62 | 19.69 (500mm) | 19.685 | 4.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 735 | UNC 5/8"-11 | |||
| AMR-D200628-20 | 19.69 (500mm) | 19.685 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 790 | Plain Face | |||
| AMR-D200628-20-50 | 19.69 (500mm) | 19.685 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 790 | UNC 1/2"-13 | |||
| AMR-D200628-20-62 | 19.69 (500mm) | 19.685 | 6.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 790 | UNC 5/8"-11 | |||
| AMR-D200828-20 | 19.69 (500mm) | 19.685 | 8.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 920 | Plain Face | |||
| AMR-D200828-20-50 | 19.69 (500mm) | 19.685 | 8.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 920 | UNC 1/2"-13 | |||
| AMR-D200828-20-62 | 19.69 (500mm) | 19.685 | 8.000 | 28.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 920 | UNC 5/8"-11 | |||
| AMR-D200530-20 | 19.69 (500mm) | 19.685 | 5.000 | 30.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 910 | Plain Face | |||
| AMR-D200530-20-50 | 19.69 (500mm) | 19.685 | 5.000 | 30.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 910 | UNC 1/2"-13 | |||
| AMR-D200530-20-62 | 19.69 (500mm) | 19.685 | 5.000 | 30.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 910 | UNC 5/8"-11 | |||
| AMR-D200832-20 | 19.69 (500mm) | 19.685 | 8.000 | 32.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | - | 1035 | Plain Face | |||
| AMR-D200832-20-50 | 19.69 (500mm) | 19.685 | 8.000 | 32.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 1035 | UNC 1/2"-13 | |||
| AMR-D200832-20-62 | 19.69 (500mm) | 19.685 | 8.000 | 32.0 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 2.00 | 3.000 | 1035 | UNC 5/8"-11 | |||
| AMRE-D200826-20 | 19.69 (500mm) | 20.000 | 8.000 | 25.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 570 | UNC 1/2"-13 | |||
| AMRE-D200828-20 | 19.69 (500mm) | 20.000 | 8.000 | 27.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 605 | UNC 1/2"-13 | |||
| AMRE-D200830-20 | 19.69 (500mm) | 20.000 | 8.000 | 29.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 640 | UNC 1/2"-13 | |||
| AMRE-D200832-20 | 19.69 (500mm) | 20.000 | 8.000 | 31.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 670 | UNC 1/2"-13 | |||
| AMRE-D200834-20 | 19.69 (500mm) | 20.000 | 8.000 | 33.5 | 15.748 (400mm) to 16.000 (406.4mm) | 5.906 (150mm) | 1.50 | 3.500 | 705 | UNC 1/2"-13 | |||
| AMR-D220630-22 | 21.65 (550mm) | 21.654 | 6.000 | 30.0 | Upon Request | Upon Request | 2.00 | - | 1000 | Plain Face | |||
| AMR-D220630-22-50 | 21.65 (550mm) | 21.654 | 6.000 | 30.0 | Upon Request | Upon Request | 2.00 | 3.000 | 1000 | UNC 1/2"-13 | |||
| AMR-D220630-22-62 | 21.65 (550mm) | 21.654 | 6.000 | 30.0 | Upon Request | Upon Request | 2.00 | 3.000 | 1000 | UNC 5/8"-11 | |||
| AMR-D220830-22 | 21.65 (550mm) | 21.654 | 8.000 | 30.0 | Upon Request | Upon Request | 2.00 | - | 1025 | Plain Face | |||
| AMR-D220830-22-50 | 21.65 (550mm) | 21.654 | 8.000 | 30.0 | Upon Request | Upon Request | 2.00 | 3.000 | 1025 | UNC 1/2"-13 | |||
| AMR-D220830-22-62 | 21.65 (550mm) | 21.654 | 8.000 | 30.0 | Upon Request | Upon Request | 2.00 | 3.000 | 1025 | UNC 5/8"-11 | |||
| AMRE-D160822-25 | 24.80 (630mm) | 16.000 | 8.000 | 21.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 530 | UNC 1/2"-13 | |||
| AMRE-D160824-25 | 24.80 (630mm) | 16.000 | 8.000 | 23.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 560 | UNC 1/2"-13 | |||
| AMRE-D160826-25 | 24.80 (630mm) | 16.000 | 8.000 | 25.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 585 | UNC 1/2"-13 | |||
| AMRE-D160828-25 | 24.80 (630mm) | 16.000 | 8.000 | 27.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 610 | UNC 1/2"-13 | |||
| AMRE-D200826-25 | 24.80 (630mm) | 20.000 | 8.000 | 25.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 665 | UNC 1/2"-13 | |||
| AMRE-D200828-25 | 24.80 (630mm) | 20.000 | 8.000 | 27.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 700 | UNC 1/2"-13 | |||
| AMRE-D200830-25 | 24.80 (630mm) | 20.000 | 8.000 | 29.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 735 | UNC 1/2"-13 | |||
| AMRE-D200832-25 | 24.80 (630mm) | 20.000 | 8.000 | 31.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 765 | UNC 1/2"-13 | |||
| AMRE-D200834-25 | 24.80 (630mm) | 20.000 | 8.000 | 33.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 800 | UNC 1/2"-13 | |||
| AMRE-D200836-25 | 24.80 (630mm) | 20.000 | 8.000 | 35.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 835 | UNC 1/2"-13 | |||
| AMRE-D200838-25 | 24.80 (630mm) | 20.000 | 8.000 | 37.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 870 | UNC 1/2"-13 | |||
| AMRE-D240826-25 | 24.80 (630mm) | 24.000 | 8.000 | 25.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 730 | UNC 1/2"-13 | |||
| AMRE-D240828-25 | 24.80 (630mm) | 24.000 | 8.000 | 27.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 770 | UNC 1/2"-13 | |||
| AMRE-D240830-25 | 24.80 (630mm) | 24.000 | 8.000 | 29.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 810 | UNC 1/2"-13 | |||
| AMRE-D240832-25 | 24.80 (630mm) | 24.000 | 8.000 | 31.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 850 | UNC 1/2"-13 | |||
| AMRE-D240834-25 | 24.80 (630mm) | 24.000 | 8.000 | 33.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 890 | UNC 1/2"-13 | |||
| AMRE-D240836-25 | 24.80 (630mm) | 24.000 | 8.000 | 35.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 930 | UNC 1/2"-13 | |||
| AMRE-D240838-25 | 24.80 (630mm) | 24.000 | 8.000 | 37.5 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 1.50 | 3.500 | 970 | UNC 1/2"-13 | |||
| AMR-D250428-25 | 24.80 (630mm) | 24.803 | 4.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 990 | Plain Face | |||
| AMR-D250428-25-50 | 24.80 (630mm) | 24.803 | 4.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 990 | UNC 1/2"-13 | |||
| AMR-D250428-25-62 | 24.80 (630mm) | 24.803 | 4.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 990 | UNC 5/8"-11 | |||
| AMR-D250528-25 | 24.80 (630mm) | 24.803 | 5.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | - | 1160 | Plain Face | |||
| AMR-D250528-25-50 | 24.80 (630mm) | 24.803 | 5.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1160 | UNC 1/2"-13 | |||
| AMR-D250528-25-62 | 24.80 (630mm) | 24.803 | 5.000 | 28.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1160 | UNC 5/8"-11 | |||
| AMR-D250430-25 | 24.80 (630mm) | 24.803 | 4.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1045 | Plain Face | |||
| AMR-D250430-25-50 | 24.80 (630mm) | 24.803 | 4.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1045 | UNC 1/2"-13 | |||
| AMR-D250430-25-62 | 24.80 (630mm) | 24.803 | 4.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1045 | UNC 5/8"-11 | |||
| AMR-D250530-25 | 24.80 (630mm) | 24.803 | 5.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | - | 1225 | Plain Face | |||
| AMR-D250530-25-50 | 24.80 (630mm) | 24.803 | 5.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1225 | UNC 1/2"-13 | |||
| AMR-D250530-25-62 | 24.80 (630mm) | 24.803 | 5.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1225 | UNC 5/8"-11 | |||
| AMR-D250630-25 | 24.80 (630mm) | 24.803 | 6.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1100 | Plain Face | |||
| AMR-D250630-25-50 | 24.80 (630mm) | 24.803 | 6.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1100 | UNC 1/2"-13 | |||
| AMR-D250630-25-62 | 24.80 (630mm) | 24.803 | 6.000 | 30.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1100 | UNC 5/8"-11 | |||
| AMR-D250432-25 | 24.80 (630mm) | 24.803 | 4.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1095 | Plain Face | |||
| AMR-D250432-25-50 | 24.80 (630mm) | 24.803 | 4.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1095 | UNC 1/2"-13 | |||
| AMR-D250432-25-62 | 24.80 (630mm) | 24.803 | 4.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1095 | UNC 5/8"-11 | |||
| AMR-D250532-25 | 24.80 (630mm) | 24.803 | 5.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | - | 1290 | Plain Face | |||
| AMR-D250532-25-50 | 24.80 (630mm) | 24.803 | 5.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1290 | UNC 1/2"-13 | |||
| AMR-D250532-25-62 | 24.80 (630mm) | 24.803 | 5.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.50 | 3.000 | 1290 | UNC 5/8"-11 | |||
| AMR-D250632-25 | 24.80 (630mm) | 24.803 | 6.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1160 | Plain Face | |||
| AMR-D250632-25-50 | 24.80 (630mm) | 24.803 | 6.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1160 | UNC 1/2"-13 | |||
| AMR-D250632-25-62 | 24.80 (630mm) | 24.803 | 6.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1160 | UNC 5/8"-11 | |||
| AMR-D250832-25 | 24.80 (630mm) | 24.803 | 8.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1325 | Plain Face | |||
| AMR-D250832-25-50 | 24.80 (630mm) | 24.803 | 8.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1325 | UNC 1/2"-13 | |||
| AMR-D250832-25-62 | 24.80 (630mm) | 24.803 | 8.000 | 32.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1325 | UNC 5/8"-11 | |||
| AMR-D250834-25 | 24.80 (630mm) | 24.803 | 8.000 | 34.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1400 | Plain Face | |||
| AMR-D250834-25-50 | 24.80 (630mm) | 24.803 | 8.000 | 34.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1400 | UNC 1/2"-13 | |||
| AMR-D250834-25-62 | 24.80 (630mm) | 24.803 | 8.000 | 34.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1400 | UNC 5/8"-11 | |||
| AMR-D250636-25 | 24.80 (630mm) | 24.803 | 6.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1270 | Plain Face | |||
| AMR-D250636-25-50 | 24.80 (630mm) | 24.803 | 6.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1270 | UNC 1/2"-13 | |||
| AMR-D250636-25-62 | 24.80 (630mm) | 24.803 | 6.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1270 | UNC 5/8"-11 | |||
| AMR-D250836-25 | 24.80 (630mm) | 24.803 | 8.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1340 | Plain Face | |||
| AMR-D250836-25-50 | 24.80 (630mm) | 24.803 | 8.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1340 | UNC 1/2"-13 | |||
| AMR-D250836-25-62 | 24.80 (630mm) | 24.803 | 8.000 | 36.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1340 | UNC 5/8"-11 | |||
| AMR-D250838-25 | 24.80 (630mm) | 24.803 | 8.000 | 38.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | - | 1540 | Plain Face | |||
| AMR-D250838-25-50 | 24.80 (630mm) | 24.803 | 8.000 | 38.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1540 | UNC 1/2"-13 | |||
| AMR-D250838-25-62 | 24.80 (630mm) | 24.803 | 8.000 | 38.0 | 19.685 (500mm) to 20.000 (508mm) | 7.874 (200mm) | 2.00 | 3.000 | 1540 | UNC 5/8"-11 | |||
| AMRE-D200826-32 | 31.50 (800mm) | 20.000 | 8.000 | 25.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 820 | UNC 1/2"-13 | |||
| AMRE-D200828-32 | 31.50 (800mm) | 20.000 | 8.000 | 27.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 855 | UNC 1/2"-13 | |||
| AMRE-D200830-32 | 31.50 (800mm) | 20.000 | 8.000 | 29.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 890 | UNC 1/2"-13 | |||
| AMRE-D200832-32 | 31.50 (800mm) | 20.000 | 8.000 | 31.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 920 | UNC 1/2"-13 | |||
| AMRE-D200834-32 | 31.50 (800mm) | 20.000 | 8.000 | 33.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 955 | UNC 1/2"-13 | |||
| AMRE-D200836-32 | 31.50 (800mm) | 20.000 | 8.000 | 35.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 990 | UNC 1/2"-13 | |||
| AMRE-D200838-32 | 31.50 (800mm) | 20.000 | 8.000 | 37.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1025 | UNC 1/2"-13 | |||
| AMRE-D200840-32 | 31.50 (800mm) | 20.000 | 8.000 | 39.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1060 | UNC 1/2"-13 | |||
| AMRE-D240826-32 | 31.50 (800mm) | 24.000 | 8.000 | 25.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 885 | UNC 1/2"-13 | |||
| AMRE-D240828-32 | 31.50 (800mm) | 24.000 | 8.000 | 27.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 925 | UNC 1/2"-13 | |||
| AMRE-D240830-32 | 31.50 (800mm) | 24.000 | 8.000 | 29.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 965 | UNC 1/2"-13 | |||
| AMRE-D240832-32 | 31.50 (800mm) | 24.000 | 8.000 | 31.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1005 | UNC 1/2"-13 | |||
| AMRE-D240834-32 | 31.50 (800mm) | 24.000 | 8.000 | 33.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1045 | UNC 1/2"-13 | |||
| AMRE-D240836-32 | 31.50 (800mm) | 24.000 | 8.000 | 35.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1085 | UNC 1/2"-13 | |||
| AMRE-D240838-32 | 31.50 (800mm) | 24.000 | 8.000 | 37.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1125 | UNC 1/2"-13 | |||
| AMRE-D240840-32 | 31.50 (800mm) | 24.000 | 8.000 | 39.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1165 | UNC 1/2"-13 | |||
| AMRE-D311226-32 | 31.50 (800mm) | 31.000 | 12.000 | 25.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1060 | UNC 1/2"-13 | |||
| AMRE-D311228-32 | 31.50 (800mm) | 31.000 | 12.000 | 27.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1110 | UNC 1/2"-13 | |||
| AMRE-D311628-32 | 31.50 (800mm) | 31.000 | 16.000 | 27.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1230 | UNC 1/2"-13 | |||
| AMRE-D311230-32 | 31.50 (800mm) | 31.000 | 12.000 | 29.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1155 | UNC 1/2"-13 | |||
| AMRE-D311630-32 | 31.50 (800mm) | 31.000 | 16.000 | 29.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1280 | UNC 1/2"-13 | |||
| AMRE-D311232-32 | 31.50 (800mm) | 31.000 | 12.000 | 31.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1200 | UNC 1/2"-13 | |||
| AMRE-D311632-32 | 31.50 (800mm) | 31.000 | 16.000 | 31.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1330 | UNC 1/2"-13 | |||
| AMRE-D311234-32 | 31.50 (800mm) | 31.000 | 12.000 | 33.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1250 | UNC 1/2"-13 | |||
| AMRE-D311634-32 | 31.50 (800mm) | 31.000 | 16.000 | 33.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1380 | UNC 1/2"-13 | |||
| AMRE-D311236-32 | 31.50 (800mm) | 31.000 | 12.000 | 35.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1295 | UNC 1/2"-13 | |||
| AMRE-D311636-32 | 31.50 (800mm) | 31.000 | 16.000 | 35.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1430 | UNC 1/2"-13 | |||
| AMRE-D311238-32 | 31.50 (800mm) | 31.000 | 12.000 | 37.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1340 | UNC 1/2"-13 | |||
| AMRE-D311638-32 | 31.50 (800mm) | 31.000 | 16.000 | 37.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1480 | UNC 1/2"-13 | |||
| AMRE-D311240-32 | 31.50 (800mm) | 31.000 | 12.000 | 39.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1385 | UNC 1/2"-13 | |||
| AMRE-D311640-32 | 31.50 (800mm) | 31.000 | 16.000 | 39.5 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 1.50 | 3.500 | 1530 | UNC 1/2"-13 | |||
| AMR-D320836-32 | 31.50 (800mm) | 31.496 | 8.000 | 36.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | - | 1905 | Plain Face | |||
| AMR-D320836-32-50 | 31.50 (800mm) | 31.496 | 8.000 | 36.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | 3.000 | 1905 | UNC 1/2"-13 | |||
| AMR-D320836-32-62 | 31.50 (800mm) | 31.496 | 8.000 | 36.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | 3.000 | 1905 | UNC 5/8"-11 | |||
| AMR-D320840-32 | 31.50 (800mm) | 31.496 | 8.000 | 40.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | - | 2085 | Plain Face | |||
| AMR-D320840-32-50 | 31.50 (800mm) | 31.496 | 8.000 | 40.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | 3.000 | 2085 | UNC 1/2"-13 | |||
| AMR-D320840-32-62 | 31.50 (800mm) | 31.496 | 8.000 | 40.0 | 25.000 (635mm) to 25.197 (640mm) | 10.630 (270mm) | 2.00 | 3.000 | 2085 | UNC 5/8"-11 | |||
| AMR-D400850-40 | 39.37 (1000mm) | 39.370 | 8.000 | 50.0 | Upon Request | Upon Request | 2.00 | - | 3250 | Plain Face | |||
| AMR-D400850-40-50 | 39.37 (1000mm) | 39.370 | 8.000 | 50.0 | Upon Request | Upon Request | 2.00 | 3.000 | 3250 | UNC 1/2"-13 | |||
| AMR-D400850-40-62 | 39.37 (1000mm) | 39.370 | 8.000 | 50.0 | Upon Request | Upon Request | 2.00 | 3.000 | 3250 | UNC 5/8"-11 |
Your Selection
Each model below is routed to the best next step based on availability.
Setup Time Calculator
How Much Is Setup Time Costing You?
Every changeover means idle spindle time. Multi-part fixturing slashes setup frequency — so your machines spend more hours cutting and less time waiting.
Your Machines
$
The Setup Problem
min
%
Annual Cost of Fixture Changeovers
1,500 hrs
Spindle Hours Lost to Setup / Year
$263K
Annual Lost Production Value
$131K
Recoverable with Workholding
Based on 250 working days/yr. Multi-part fixturing reduces changeover frequency so your spindle spends more time cutting.
From the Resource Hub
Related Content
Blogs
Workholding
Product Selection
Ready to Rock! - Epoxy Mineral Tombstones
Dr. Tony Schmitz, a professor specializing in vibration analysis, came to AME to do a series of tests on the various material types of tombstones and breaks down his findings to determine the best type of tombstone for your shop.
Blogs
Workholding
Product Selection
Why You Should Consider Off-Machine Setups for Your Machining Process
If you want to reduce your overall costs and increase your flexibility to meet your customers’ demands, consider incorporating off-machine set-ups into your machining process.
