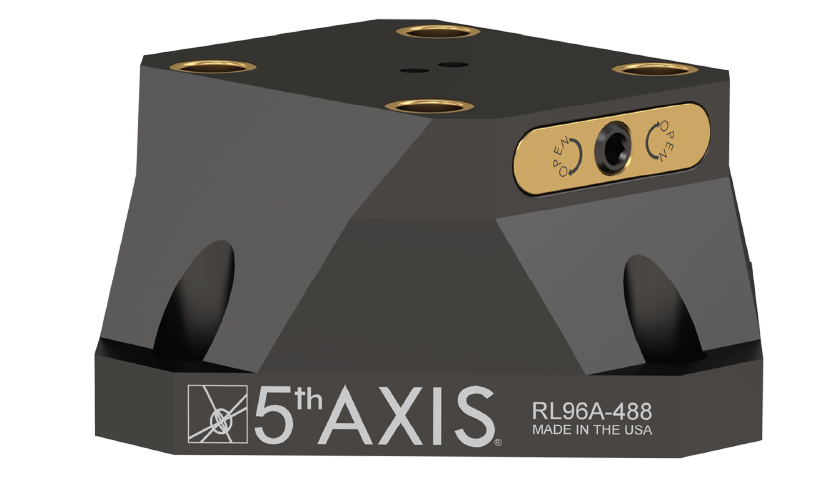

RockLock risers from 5th Axis provide additional lift between the machining table and the workholding or workpiece. With this additional space, there is extra clearance to work around tooling obstacles on 5-axis machines.
| Key Features | |
| Clearance | Provides additional clearance between the machining table and the workpiece or workholding |
| Prevent Crashes | Essential for 5-axis tables, risers prevent toolholders from hitting the table or trunnion |
| Quick-Change Variety | The integrated RockLock quick-change system comes in a variety of diameters and heights to accommodate different applications |
| Repeatable and Dependable | Maintain <0.008 mm repeatability when locking into the base, regardless of the height |
| Product ID | 3D CAD | Shape | Mounting Pattern | Material | Length (mm) | Width (mm) | Height (mm) | Mounting | Positions | |
|---|---|---|---|---|---|---|---|---|---|---|
| RL96A-3915 | rectangular | 96 mm | Aluminum | 381 | 230 | 80 | 4x M16 bolts at 200mm square | multi position horizontal | ||
| RL96A-4816 | rectangular | 96 mm | Aluminum | 400 | 200 | 100 | 4x M12 at 320 mm x 160 mm rectangle (80 mm t-slots) or 4x M16 at 360 mm x 126 mm rectangle (63 mm t- | multi position horizontal | ||
| RL96A-38 | circular | 96 mm | Aluminum | 201.9 | 201.9 | 75 | 4x M12 bolts at 90º on 78 mm PCD or 3x M12 bolts at 120º on 178 mm | single position | ||
| RL96A-411 | circular | 96 mm | Aluminum | 276 | 276 | 100 | 4x ½"-13 or M12 bolts at 90º on 252.0 mm dia or 3x ½"-13 or M12 bolts at 120º on 252 mm dia | single position | ||
| RL96A-2710 | rectangular | 96 mm | Aluminum | 175 | 240 | 50 | 4x M12 on 126 mm x 210 mm grid | multi position horizontal | ||
| RL96S-6695 | rectangular | 96 mm | Aluminum | 156 | 150 | 30 | 2x M12 at 180º on 96.14 mm PCD | multi position horizontal | ||
| RL96A-6695 | rectangular | 96 mm | Steel | 156 | 150 | 30 | 2x M12 at 180º on 96.14 mm PCD | multi position horizontal | ||
| RL96A-10 | circular | 96 mm | Aluminum | 248 | 248 | 30 | DIY 248 mm diameter | multi position horizontal | ||
| RL96A-2715 | rectangular | 96 mm | Aluminum | 175 | 240 | 50 | 4x M12 on 126 mm x 210 mm grid | multi position 3-axis | ||
| RL96A-488 | rectangular | 96 mm | Aluminum | 200 | 200.00 | 100 | 4x M12 at 90º on 200 mm PCD | multi position 3-axis |
