Machine Tool Ecosystem

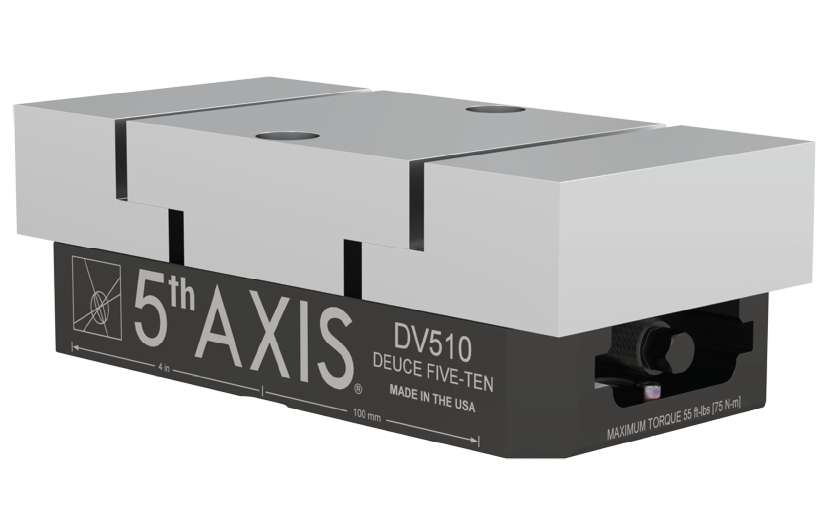

Standard Double-Station Vises for 3-Axis CNC Setups
5th Axis Standard Double-Station Vises
Quality is built on a precision foundation
5th Axis double-station vises are optimized for 3-axis machinists to maximize part density per cycle while operating at top efficiency. The flexible design allows shops to convert the double-station vise into a single position fixed jaw by removing the center jaw with just two bolts. Quickly change jaws between hardened steel, machinable steel, and machinable aluminum based on the application.
| Key Features | |
| Part Adaptability | Friction pins allow for independent movement of the jaws on the lead screw while still providing maximum clamping force. |
| Reversible Jaws | Easily reverse the jaws to accommodate larger parts. |
| Single Station Conversion | Easily convert the double-station vise to a single-station for additional clamping range and versatility. |
5th Axis Standard Double-Station Vises
Technical Specifications
| Product ID | 3D CAD | Mounting Pattern (mm) | Vise Height (mm) | Vise Width (mm) | Vise Depth (mm) | Jaw Width (mm) | Material | 96 mm Adapted (1x Vise) Part Number | 96 mm Adapted (2x Vises) Part Number | |
|---|---|---|---|---|---|---|---|---|---|---|
| DV56-J1 | 96 | 125.73 | 152.4 | 72.9 | 75 | Hardened Steel | - | - | ||
| DV56-J2 | 96 | 125.73 | 152.4 | 72.9 | 75 | Machinable Aluminum | - | - | ||
| DV56-J3 | 96 | 125.73 | 152.4 | 72.9 | 75 | Machinable Steel | - | - | ||
| DV510-J1 | 96 | 125.73 | 258.3 | 73.4 | 125.7 | Hardened Steel | - | - | ||
| DV510-J2 | 96 | 125.73 | 258.3 | 73.4 | 125.7 | Machinable Aluminum | - | - | ||
| DV510-J3 | 96 | 125.73 | 258.3 | 73.4 | 125.7 | Machinable Steel | - | - | ||
| DV510-J4 | 96 | 125.73 | 258.3 | 73.4 | 125.7 | Hardened Steel* | - | - | ||
| DV75150X-J1 | 52 | 75 | 150 | 56 | 75 | Hardened Steel | R96-DV75150X-J1 | R96-2DV75150X-J1 | ||
| DV75150X-J2 | 52 | 75 | 150 | 56 | 75 | Machinable Aluminum | R96-DV75150X-J2 | R96-2DV75150X-J2 | ||
| DV75150X-J3 | 52 | 75 | 150 | 56 | 75 | Machinable Steel | R96-DV75150X-J3 | R96-2DV75150X-J3 |
Your Selection
Each model below is routed to the best next step based on availability.
Setup Time Calculator
How Much Is Setup Time Costing You?
Every changeover means idle spindle time. Multi-part fixturing slashes setup frequency — so your machines spend more hours cutting and less time waiting.
Your Machines
$
The Setup Problem
min
%
Annual Cost of Fixture Changeovers
1,500 hrs
Spindle Hours Lost to Setup / Year
$263K
Annual Lost Production Value
$131K
Recoverable with Workholding
Based on 250 working days/yr. Multi-part fixturing reduces changeover frequency so your spindle spends more time cutting.
