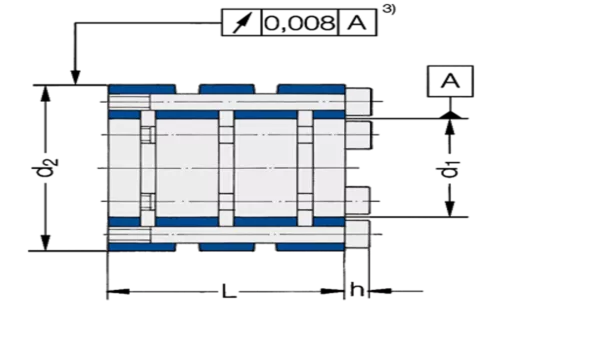

Spieth DSM clamping sleeves are tailored for motor shafts, delivering friction-locked, high-torque connections optimized for motor-driven applications.
SPIETH Clamping Sleeves eliminate the need for expensive machining operations such as shaft and hub keyways, splines, shoulders and bolt holes by creating an instant "shrink-fit" connection.
| Product ID | 3D CAD | D (mm) | d₂ (mm) [h5] | K Or L Mm | Clamping Screw Iso | H (mm) | Ma Nm | Number Of Screws | Transmittable Force M | Transmittable Force Fa | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSM 14.2 | 14 | 26 | 26 | M3 | 3 | 2 | 4 | 50 | 7100 | ||
| DSM 16.1 | 16 | 32 | 26 | M4 | 4 | 5 | 6 | 95 | 11900 | ||
| DSM 16.2 | 16 | 32 | 36 | M4 | 4 | 5 | 6 | 130 | 16300 | ||
| DSM 16.28 | 16 | 28 | 26 | M3 | 3 | 2 | 6 | 66 | 8250 | ||
| DSM 18.2 | 18 | 34 | 36 | M4 | 4 | 5 | 6 | 160 | 17800 | ||
| DSM 18.30 | 18 | 30 | 26 | M3 | 3 | 2 | 6 | 92 | 10222 | ||
| DSM 19.1 | 19 | 35 | 26 | M4 | 4 | 5 | 6 | 130 | 13700 | ||
| DSM 19.2 | 19 | 35 | 36 | M4 | 4 | 5 | 6 | 200 | 21100 | ||
| DSM 19.32 | 19 | 32 | 26 | M3 | 3 | 2 | 6 | 100 | 10526 | ||
| DSM 20.1 | 20 | 40 | 36 | M5 | 5 | 10 | 5 | 190 | 19000 | ||
| DSM 20.2 | 20 | 40 | 46 | M5 | 5 | 10 | 5 | 240 | 24000 | ||
| DSM 20.32 | 20 | 32 | 26 | M3 | 3 | 2 | 6 | 108 | 10800 | ||
| DSM 22.1 | 22 | 42 | 36 | M5 | 5 | 10 | 5 | 220 | 20000 | ||
| DSM 22.2 | 22 | 42 | 46 | M5 | 5 | 10 | 5 | 290 | 26400 | ||
| DSM 22.35 | 22 | 35 | 26 | M3 | 3 | 2 | 6 | 122 | 11091 | ||
| DSM 24.1 | 24 | 44 | 36 | M5 | 5 | 10 | 5 | 260 | 21700 | ||
| DSM 24.2 | 24 | 44 | 46 | M5 | 5 | 10 | 5 | 360 | 30000 | ||
| DSM 24.36 | 24 | 36 | 26 | M3 | 3 | 2 | 6 | 145 | 12083 | ||
| DSM 25.1 | 25 | 45 | 41 | M5 | 5 | 10 | 6 | 280 | 22400 | ||
| DSM 25.2 | 25 | 45 | 52 | M5 | 5 | 10 | 6 | 450 | 35900 | ||
| DSM 25.37 | 25 | 37 | 26 | M3 | 3 | 2 | 6 | 184 | 14720 | ||
| DSM 28.1 | 28 | 48 | 41 | M5 | 5 | 10 | 6 | 320 | 22900 | ||
| DSM 28.2 | 28 | 48 | 52 | M5 | 5 | 10 | 6 | 550 | 39300 | ||
| DSM 28.40 | 28 | 40 | 26 | M3 | 3 | 2 | 6 | 205 | 14643 | ||
| DSM 30.1 | 30 | 52 | 57 | M6 | 6 | 17 | 5 | 690 | 46000 | ||
| DSM 30.2 | 30 | 52 | 62 | M6 | 6 | 17 | 5 | 710 | 47300 | ||
| DSM 30.42 | 30 | 42 | 26 | M3 | 3 | 2 | 6 | 220 | 14667 | ||
| DSM 32.1 | 32 | 55 | 57 | M6 | 6 | 17 | 5 | 770 | 48100 | ||
| DSM 32.2 | 32 | 55 | 62 | M6 | 6 | 17 | 5 | 800 | 50000 | ||
| DSM 32.48 | 32 | 48 | 36 | M4 | 4 | 5 | 6 | 365 | 22813 | ||
| DSM 35.1 | 35 | 58 | 57 | M6 | 6 | 17 | 6 | 1080 | 61700 | ||
| DSM 35.2 | 35 | 58 | 62 | M6 | 6 | 17 | 6 | 1120 | 63900 | ||
| DSM 35.52 | 35 | 52 | 36 | M4 | 4 | 5 | 6 | 400 | 22857 | ||
| DSM 38.1 | 38 | 60 | 57 | M6 | 6 | 17 | 6 | 1250 | 65800 | ||
| DSM 38.2 | 38 | 60 | 62 | M6 | 6 | 17 | 6 | 1300 | 68400 | ||
| DSM 38.55 | 38 | 55 | 36 | M4 | 4 | 5 | 6 | 435 | 22895 | ||
| DSM 40.1 | 40 | 70 | 77 | M8 | 8 | 40 | 5 | 1750 | 87500 | ||
| DSM 40.2 | 40 | 70 | 92 | M8 | 8 | 40 | 5 | 1800 | 90800 | ||
| DSM 40.56 | 40 | 56 | 36 | M4 | 4 | 5 | 6 | 455 | 22750 | ||
| DSM 42.1 | 42 | 72 | 77 | M8 | 8 | 40 | 5 | 1850 | 88100 | ||
| DSM 42.2 | 42 | 72 | 92 | M8 | 8 | 40 | 5 | 2000 | 95200 | ||
| DSM 42.58 | 42 | 58 | 36 | M4 | 4 | 5 | 6 | 480 | 22857 | ||
| DSM 45.1 | 45 | 75 | 77 | M8 | 8 | 40 | 5 | 2100 | 93300 | ||
| DSM 45.2 | 45 | 75 | 92 | M8 | 8 | 40 | 5 | 2250 | 101000 | ||
| DSM 45.62 | 45 | 62 | 36 | M4 | 4 | 5 | 6 | 510 | 22667 | ||
| DSM 48.1 | 48 | 78 | 77 | M8 | 8 | 40 | 5 | 2370 | 98800 | ||
| DSM 48.2 | 48 | 78 | 92 | M8 | 8 | 40 | 5 | 2600 | 108000 | ||
| DSM 48.65 | 48 | 65 | 36 | M4 | 4 | 5 | 6 | 545 | 22708 | ||
| DSM 50.1 | 50 | 80 | 77 | M8 | 8 | 40 | 6 | 2500 | 100000 | ||
| DSM 50.2 | 50 | 80 | 92 | M8 | 8 | 40 | 6 | 2700 | 109000 | ||
| DSM 55.1 | 55 | 85 | 77 | M8 | 8 | 40 | 6 | 2850 | 104000 | ||
| DSM 55.2 | 55 | 85 | 92 | M8 | 8 | 40 | 6 | 3100 | 113000 | ||
| DSM 60.1 | 60 | 90 | 92 | M8 | 8 | 40 | 6 | 3550 | 118000 | ||
| DSM 60.2 | 60 | 90 | 122 | M8 | 8 | 40 | 6 | 3550 | 118000 | ||
| DSM 65.1 | 65 | 95 | 92 | M8 | 8 | 40 | 6 | 4000 | 123000 | ||
| DSM 65.2 | 65 | 95 | 122 | M8 | 8 | 40 | 6 | 4000 | 123000 | ||
| DSM 70.1 | 70 | 100 | 92 | M8 | 8 | 40 | 6 | 4500 | 129000 | ||
| DSM 70.2 | 70 | 100 | 122 | M8 | 8 | 40 | 6 | 4500 | 129000 | ||
| DSM 75.1 | 75 | 105 | 92 | M8 | 8 | 40 | 7 | 5000 | 133000 | ||
| DSM 75.2 | 75 | 105 | 122 | M8 | 8 | 40 | 7 | 5000 | 133000 | ||
| DSM 80.1 | 80 | 110 | 122 | M8 | 8 | 40 | 8 | 6500 | 163000 | ||
| DSM 85.1 | 85 | 115 | 122 | M8 | 8 | 40 | 8 | 7150 | 168000 |
