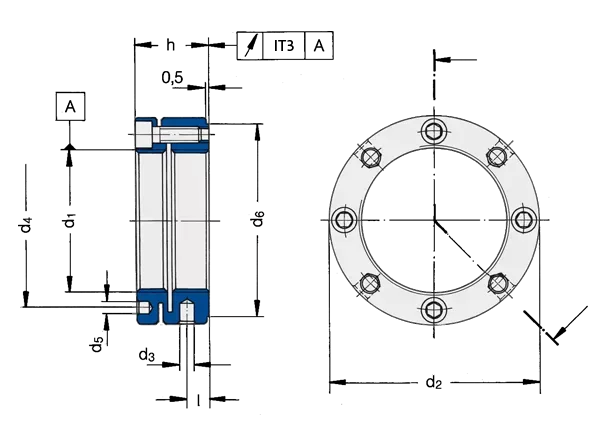

Engineered for precise bearing mounting, the MSA series excels in compact assemblies with its optimized design for angular contact and cylindrical roller bearings.
During the clamping process (tightening the clamping screw), no movement takes place at the end face and at the main thread of the clamping nut. This precludes the possibility of friction loss, and so eliminates the cause for the poor efficiency of conventional nuts.
| Product ID | 3D CAD | ød₁ (mm) [ISO-5H] | ød₂ (mm) [h11] | ød₆ (mm) [h11] | øh (mm) | Clamping Screw (ISO 4762) | Clamping Screw Mₐ (Nm) | Number Clamping Screws | Calc Factor A (mm) | Calc Factor B (N) | Breaking Load (kN) | Breakaway Torque (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MSA 20x1 | M20x1 | 35 | 31 | 17 | M3 | 2 | 5 | 1.281 | 3938 | 60 | 44 | ||
| MSA 25x1.5 | M25x1.5 | 40 | 36 | 19 | M3 | 2 | 5 | 1.633 | 3859 | 83 | 46 | ||
| MSA 30x1.5 | M30x1.5 | 45 | 41 | 19 | M3 | 2 | 5 | 1.921 | 3780 | 100 | 59 | ||
| MSA 35x1.5 | M35x1.5 | 53 | 48 | 22 | M4 | 2.9 | 4 | 2.21 | 3666 | 118 | 82 | ||
| MSA 40x1.5 | M40x1.5 | 58 | 54 | 22 | M4 | 2.9 | 4 | 2.5 | 3588 | 123 | 95 | ||
| MSA 45x1.5 | M45x1.5 | 64 | 59 | 23 | M4 | 2.9 | 5 | 2.789 | 4388 | 134 | 133 | ||
| MSA 50x1.5 | M50x1.5 | 69 | 64 | 24 | M4 | 2.9 | 6 | 3.079 | 5148 | 149 | 172 | ||
| MSA 55x1.5 | M55x1.5 | 73 | 69 | 24 | M4 | 2.9 | 6 | 3.369 | 5031 | 141 | 188 | ||
| MSA 60x1.5 | M60x1.5 | 78 | 74 | 24 | M4 | 2.9 | 6 | 3.655 | 4914 | 143 | 203 | ||
| MSA 65x1.5 | M65x1.5 | 83 | 79 | 24 | M4 | 2.9 | 7 | 3.948 | 5597 | 273 | 248 | ||
| MSA 70x1.5 | M70x1.5 | 93 | 88 | 27 | M5 | 6 | 6 | 4.238 | 7620 | 396 | 395 | ||
| MSA 75x1.5 | M75x1.5 | 98 | 93 | 27 | M5 | 6 | 6 | 4.525 | 7430 | 401 | 422 | ||
| MSA 80x2 | M80x2 | 103 | 98 | 28 | M5 | 6 | 6 | 4.873 | 7239 | 430 | 385 | ||
| MSA 85x2 | M85x2 | 112 | 106 | 30 | M6 | 10 | 6 | 5.168 | 9990 | 496 | 554 | ||
| MSA 90x2 | M90x2 | 117 | 111 | 30 | M6 | 10 | 6 | 5.453 | 9720 | 501 | 596 | ||
| MSA 95x2 | M95x2 | 122 | 116 | 30 | M6 | 10 | 6 | 5.744 | 9450 | 508 | 605 | ||
| MSA 100x2 | M100x2 | 130 | 123 | 32 | M6 | 10 | 6 | 6.033 | 9180 | 594 | 728 | ||
| MSA 105x2 | M105x2 | 135 | 128 | 32 | M6 | 10 | 6 | 6.321 | 8910 | 599 | 753 | ||
| MSA 110x2 | M110x2 | 140 | 133 | 32 | M6 | 10 | 6 | 6.616 | 8640 | 606 | 773 | ||
| MSA 120x2 | M120x2 | 155 | 145 | 36 | M6 | 10 | 6 | 7.193 | 8100 | 886 | 928 | ||
| MSA 130x3 | M130x3 | 165 | 155 | 36 | M6 | 10 | 6 | 7.895 | 7560 | 875 | 1049 | ||
| MSA 140x3 | M140x3 | 180 | 170 | 36 | M6 | 10 | 8 | 8.475 | 9360 | 1032 | 1357 | ||
| MSA 150x3 | M150x3 | 190 | 180 | 36 | M6 | 10 | 8 | 9.05 | 8640 | 1050 | 1468 | ||
| MSA 160x3 | M160x3 | 205 | 195 | 40 | M8 | 25 | 8 | 9.633 | 14520 | 1199 | 3136 | ||
| MSA 170x3 | M170x3 | 215 | 205 | 40 | M8 | 25 | 8 | 10.213 | 13200 | 1213 | 3241 | ||
| MSA 180x3 | M180x3 | 230 | 220 | 40 | M8 | 25 | 8 | 10.789 | 11880 | 1399 | 3598 | ||
| MSA 190x3 | M190x3 | 240 | 230 | 40 | M8 | 25 | 8 | 11.362 | 10560 | 1158 | 3803 | ||
| MSA 200x3 | M200x3 | 245 | 235 | 40 | M8 | 25 | 8 | 11.948 | 9240 | 1021 | 3810 |
