Threaded Dual Clamping Bar for CNC Workholding Systems

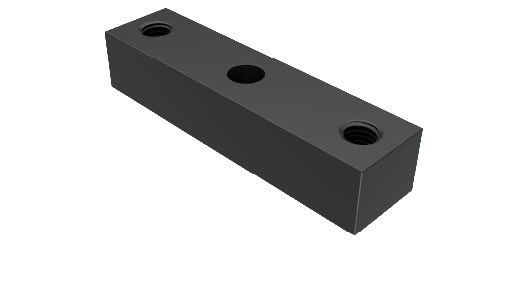

Threaded Dual Clamping Bar

Quality is built on a precision foundation

Key Features
Black oxide finish provides corrosion resistance and extended life
Threaded holes accommodate smooth or serrated, and fixed or adjustable ball elements, allowing for taller support heights
Capable of use as a non-precision single- or dual-clamping base
Accommodates ½"-13 or ⅝"-11 grid systems

Note: Custom sizes available upon request.

Threaded Dual Clamping Bar

Technical Specifications

Threaded Dual Clamping Bar Drawing
Showing 8 of 8 models
Loading...
Product ID3D CADBuy OnlineøA (in)H (in)L1 (in)L2 (in)W (in)Thread (UNC)System (UNC)
AMF-255100.531.000±.00055.002.001.00½"-13½"-13
AMF-255200.532.000±.00055.002.001.00½"-13½"-13
AMF-325100.531.00±.0153.001.001.25½"-13½"-13
AMF-32510-010.661.00±.0153.001.001.25⅝"-11⅝"-11
AMF-345100.531.00±.0155.002.001.25½"-13½"-13
AMF-34510-010.661.00±.0155.002.001.25⅝"-11⅝"-11
AMF-365100.531.00±.0157.003.001.25½"-13½"-13
AMF-34510-010.661.00±.0157.003.001.25⅝"-11⅝"-11
