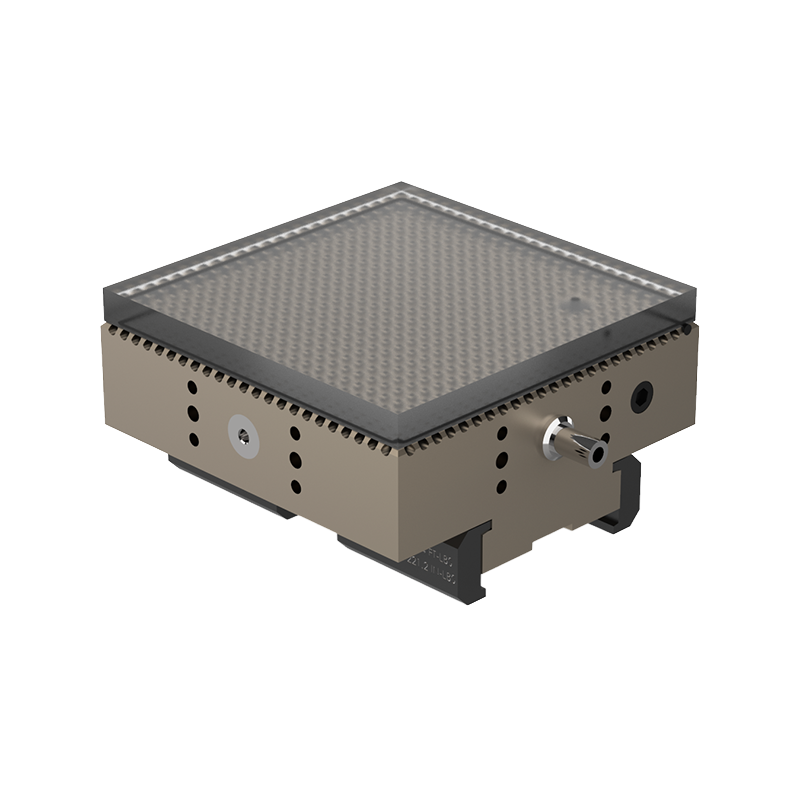

trivaCLAMP
Vacuum-based clamping modules that gently secure fragile, thin-walled, or irregular parts without distortion or marking.
trivaCLAMP
no damage, minimal vibrations
A modular vacuum workholding system that enables gentle, uniform clamping of flat or delicate workpieces, including thin and non-magnetic materials that are difficult to hold with traditional vises. Securing parts by vacuum pressure, clamp-induced distortion and pressure marks are eliminated, as well as a significant reduction in vibration. Full machining access to the workpiece is provided with no bulky jaws or vises obstructing the piece, making it ideal for large plates, sheet material, or finely finished components.
| Key Features | |
| Gentle Clamping | With distributed vacuum force, work piece deformation is prevented; even soft or thin parts won't have pressure marks or dents |
| Stability | Excellent stability for thin or large parts by securing the workpiece across the entire contact area, minimizing vibrations during machining |
| Unobstructed Machining | Without traditional clamps or vises in the way, all sides of the workpiece are reachable for cutting or finishing, and loading/unloading the part is simple and fast |
| Various Sizes | Modular vacuum plate system is made of high-strength, hard-anodized aluminum in a variety of sizes to suit different workpiece dimensions |
| Precise Locating | Optional side-stop rails can be added for precise workpiece location |
| Custom Plates | Raw vacuum plates are available that can be custom-machined to match complex part shapes |
| Dedicated Vacuum Pumps Optional | Standard rotary pump is provided for continuous operation or for connecting multiple plates, and higher-capacity pumps can be supplied for demanding applications |
| Compatible | Works well with other Swiss Modular systems such as powerCLAMP, tripoxyMINERAL, and oppSYSTEM components |
Overview Catalog
Learn about our full workholding line including CNC tombstones, workholding systems, Build on the Rock partners, and custom fixturing solutions.
Capabilities Brochure
Our AMROK capabilities PDF offering a brief overview of our workholding product selection.
Complete Guide to Stationary Workholding
Knowing your why is a secret weapon. Not only do you understand what motivates you and gets you up in the morning, you also understand your customers and what they need to succeed. At AME, we know there are missing pieces and unknowns in every project. We’re here to help our customers in the machine tool industry balance the equation.
trivaCLAMP
Technical Specifications
| Product ID | 3D CAD | |
|---|---|---|
| UA18-25-40 | ||
| UP150-300-40R50 | ||
| UPB2JN | ||
| UT150-30-40 |
