Coolant Filtration for CNC Machine Tools

Custom Coolant Filtration Systems

Our custom filtration systems are designed to deliver continuous optimum performance by incorporating replaceable cartridge or bag filter elements and filters. Each filtration system is configured precisely to meet the unique requirements of every application

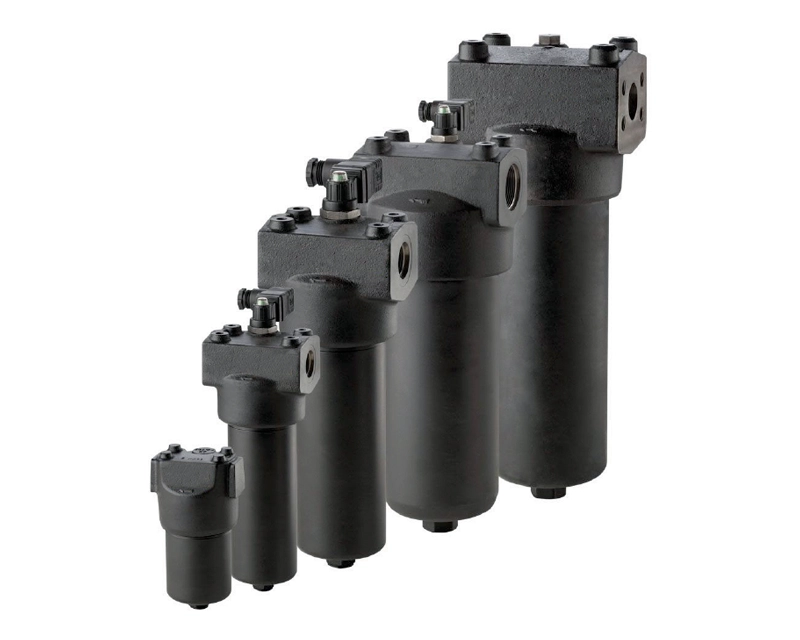

CARTRIDGE FILTERS

Introducing our innovative alternative to conventional high-pressure and reverse flow filters. Our cartridge filters effectively remove ingressed contamination, safeguarding sensitive components from potential damage. By blocking pump-generated debris before it reaches servo or proportional valves, our filters offer unrivaled durability and performance, making them the ideal choice for high-pressure filtration requirements.

BAG FILTERS

Our efficient bag filtration system operates by allowing unfiltered liquid to enter the housing above the bag, which then passes through the bag, capturing and containing solids. When the unit is serviced, the bag is easily and completely removed, ensuring thorough cleaning. The filter bag's outer diameter creates a radial seal against the housing's inner diameter, preventing fluid bypass. Additionally, our system features a tool-free installation and removal process, thanks to a single cover gasket.

CYCLONIC FILTERS

No waste.  No filtration media.  No maintenance.
A waste free coolant filtration system which achieves filtration through centrifugal force, eliminating the need for disposable paper or
cartridge filters.

  • ⃝Can remove 90% of 10μm sludge for water based coolant.
  • No bubbles or foam is produced.
  • ⃝Contaminants are concentrated in the sludge pot, and once removed they cannot return to the coolant tank.

PAPER FILTRATION BELT

Our paper filtration systems are specifically engineered to effectively remove solid particles from various types of liquids, including water, emulsions, and aqueous solutions. These versatile filters find applications not only in the machine tools market but also in other industries such as chemistry, food, painting, petrochemistry, glass, and industrial washing machines.

We offer a range of filtration models, catering to different requirements. Our systems provide outputs ranging from 30 to 400 L/min for soluble oil, and from 15 to 200 L/min for oil.

Chip Conveyor & Coolant Filtration Overview

COOLANT FAQS

WHY DOES COOLANT NEED TO BE CLEANED?

Coolant is contaminated by processing residues such as chips, dust, etc. and shortens the life of pumps and valves within coolant systems. This also improves your tool life and the quality of the parts being produced. In order to filter coolant from these impurities, filtration systems are used for coolant processing.

WHAT METHODS ARE THERE FOR CLEANING COOLANT?

Various methods are available for cleaning coolants, including cartridge filtration, bag filters, cyclonic filters, paper filtration belts, and magnetic filtration. Learn more about coolant filtration here.

WHAT IS COOLANT AND WHAT IS IT USED FOR?

Coolants can be water-based, synthetic, or oil-based. Coolant is used in industrial production with CNC machine tools. They cool and lubricate the workpiece to be machined and thus enable economical operation.

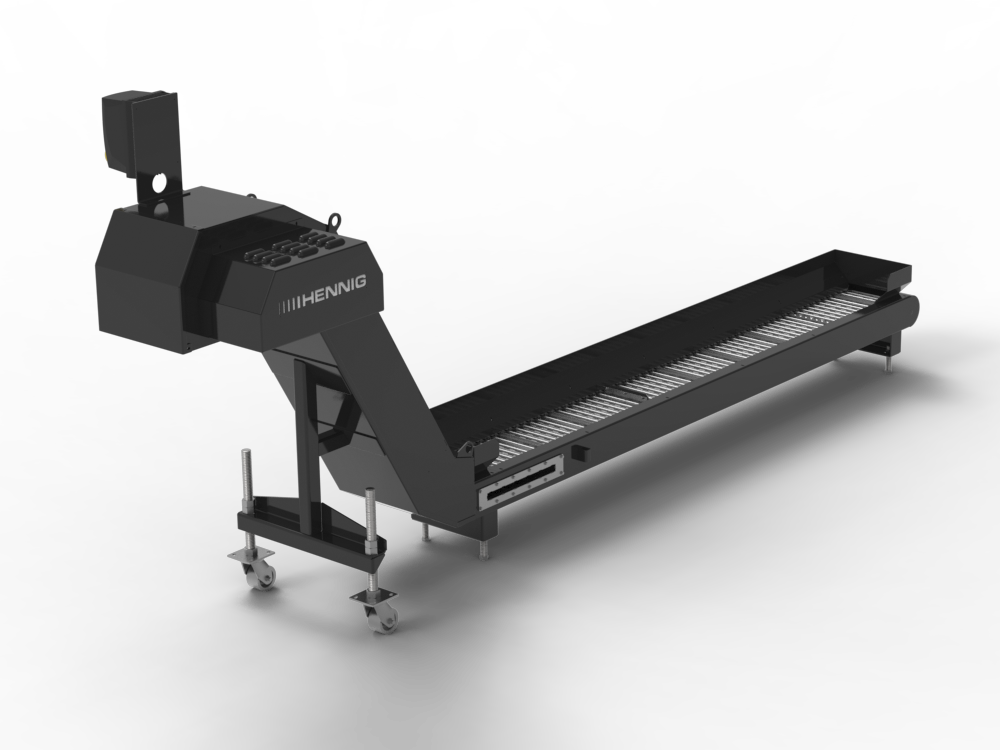

HOW DOES THE COOLANT FILTER WORK IN THE CDF PROCESS?

In the CDF (Chip-Disc Filtration) process, the contaminated coolant passes through a stainless-steel medium that removes the particles and allows only the clean coolant to pass through. This can filter down to 25-30 microns of nominal filtration. The use of the above-mentioned products can filter down through spindle-type work.
